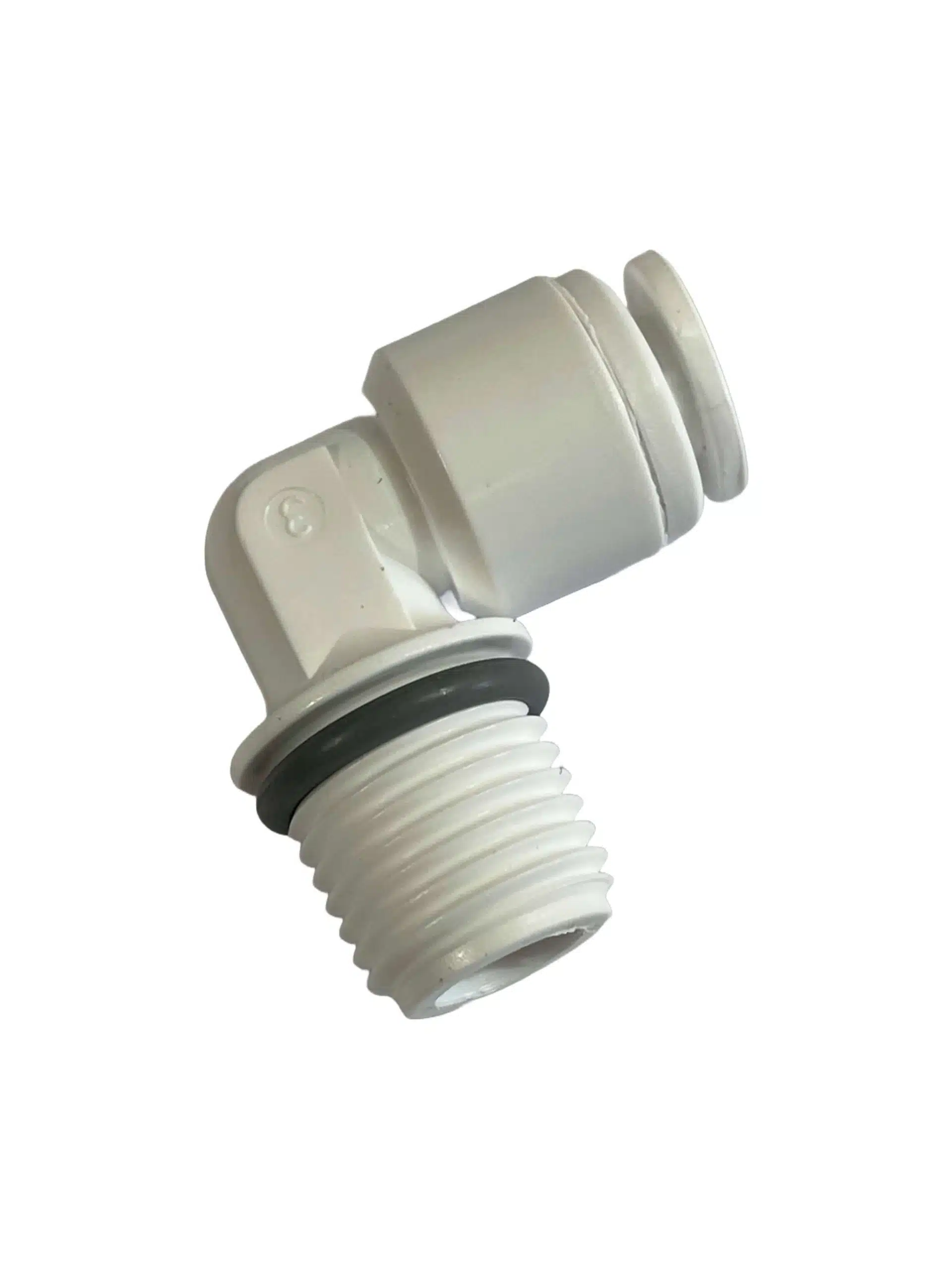

1/4″ Male NPT Elbow to 1/4″ Tube GT10-23LS

$3.05

Bulk Quantity Discounts
10+10%

1/4″ tube to 1/4″ NPT (13.7mm) Elbow Fitting.  Ideal for the Ultimate Spirit Filter Kit 1125E housing.

Description

1/4″ tube to 1/4″ NPT elbow fitting. 1/4″ NPT = 13.7mm.

Suits 1/4″ OD high pressure tubing commonly used in water filtration units.

GT10-23LS is the same as PI480822S with the addition of a sealing o-ring.

Please note: This style of elbow is preferred for our Spirit Filter Kit Housing (1125E) as it forms a better seal compared to a standard 1/4″ elbow fitting.

Thread Type and Size Chart

BSP size (British Standard Pipe) Actual Diameter Imperial Actual Diameter Metric
1/8” BSP 0.35 inch 9 mm
1/4” BSP 1/2 inch 12.7 mm
3/8” BSP 6/10 inch 15 mm
1/2” BSP 3/4 inch 19 mm
3/4” BSP 1 inch 25 mm
1″ BSP 1 1/4 inch 31 mm
1 1/4″ BSP 1 2/3 inch 40 mm
1 1/2″ BSP 1 3/4 inch 45 mm
2″ BSP 2 1/4 inch 57 mm
UNS size (Unified National Special) Actual Diameter Imperial Actual Diameter Metric
7/16” UNS 0.4375” 11 mm
