Description

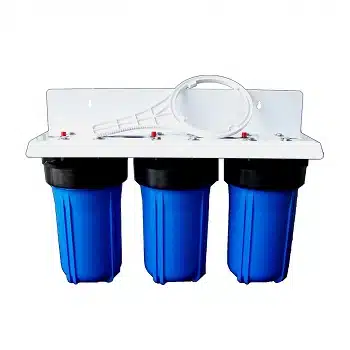

Large 10″ Triple System filter housing 1″ Bsp inlet & outlets suits 10″ x 4.5″ filters Ideal for Whole of house, Pumps, Tanks etc. or any where a high flow rate is required eg. house, rural or commercial applications. Complete 10″ x 4.5″ housings 1″ Bsp ports with Stainless Steel mounting bracket & screws and a housing sump spanner.
Larger filters can be used which have a bigger capacity and longer service life compared to standard size filter housings. A range of filters are available for every situation. Takes 10″ x 4.5″ filters.
Flow rate up to 80 Lpm depending on filter used and water pressure & flow.
Dimensions are 450mm high with bracket x 620mm wide.
Max pressure 620 kpa
Pressure limiting valve is recommended where pressure is over 550kpa
If your system has plastic ports do not use pipe dope or other liquid thread sealers. Use only Teflon tape to seal threaded connections.
Triple-1045BB
Watermark Certificate 052014 for Model ID #IT002527
