3M Under Sink Filtered Drinking Water Systems

Description

Quick change 3M™ filter cartridge filtration systems will reduce Chlorine taste odour, scale and other impurities from your water.

The systems are very easy to install with most of the fittings simply pushing in to lock and seal.

The 3M™ Nep Head system allows you to choose between a large range of filter cartridges that all suit the 3M Nep head that features a water shut off system as you remove the cartridge.

3M™ are a world leader in filtration and they have a range of filter cartridges for most applications.

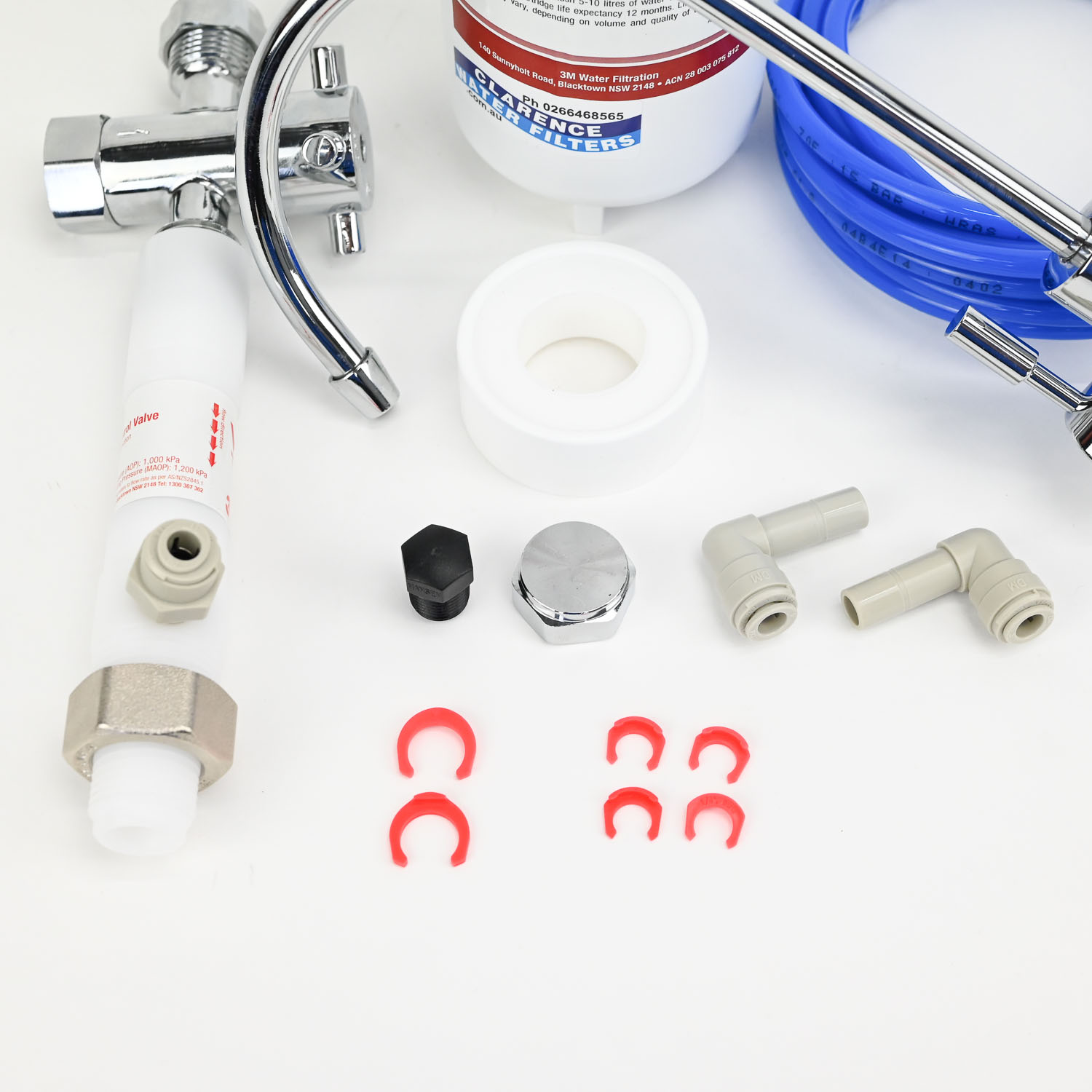

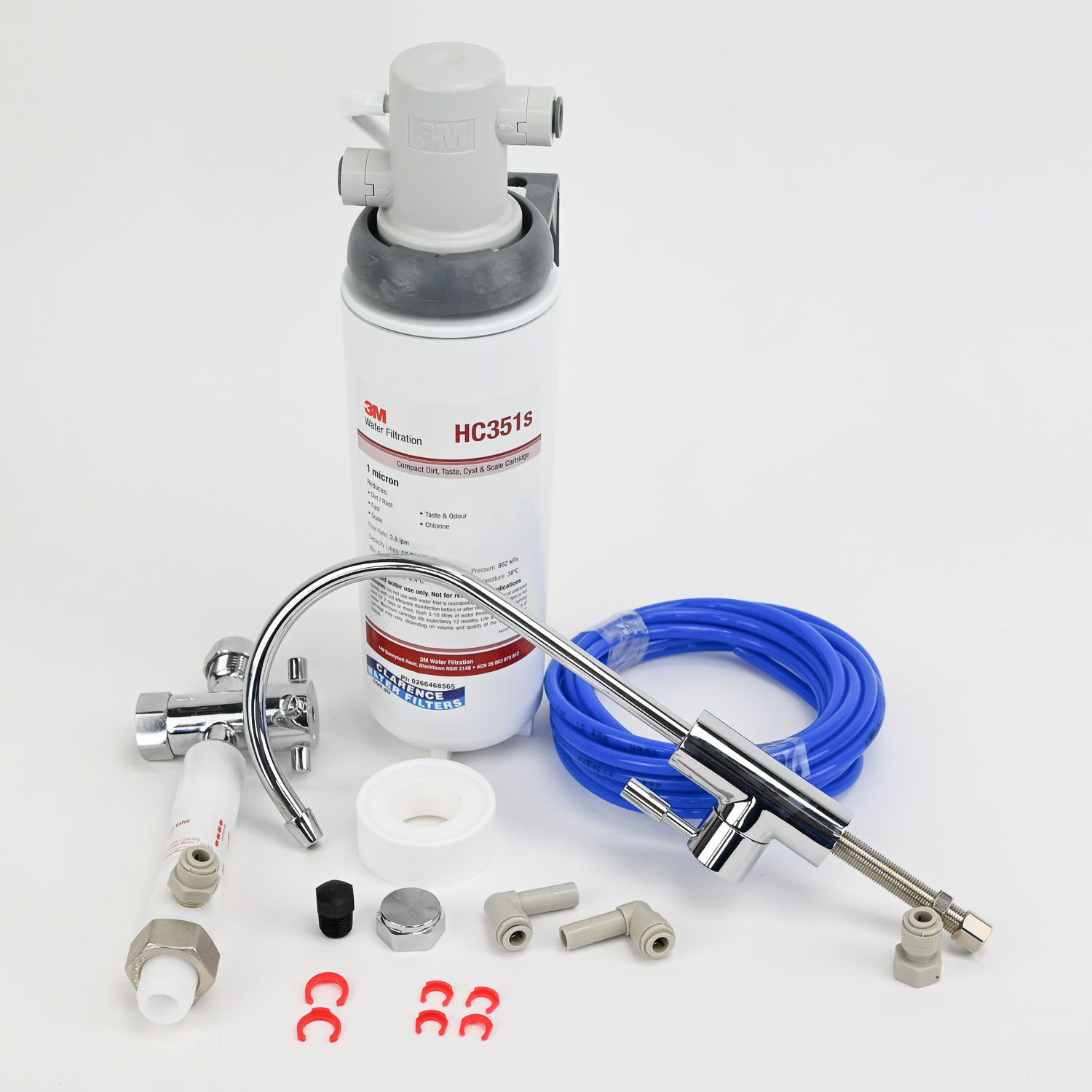

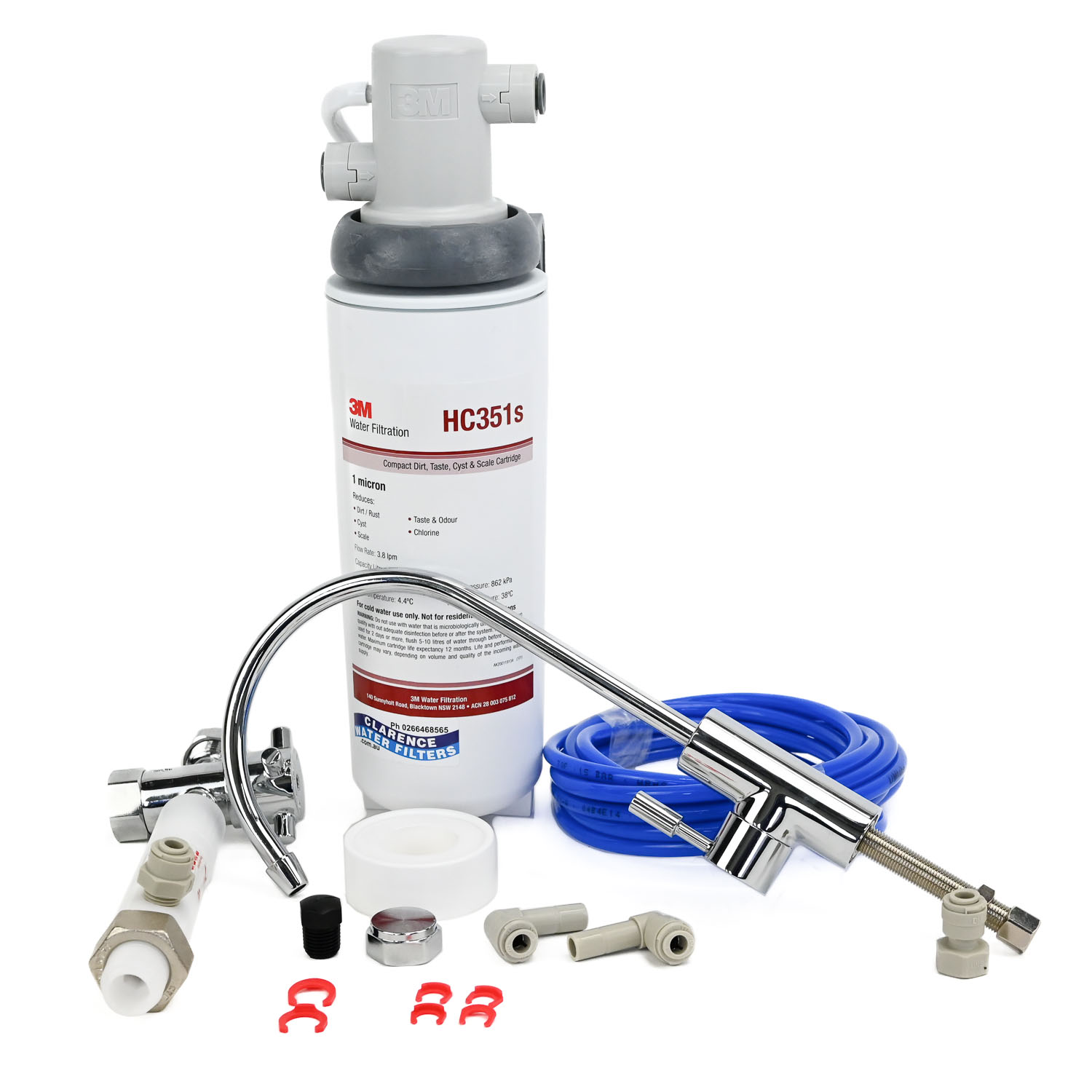

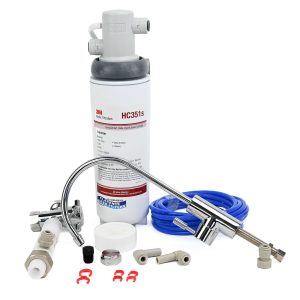

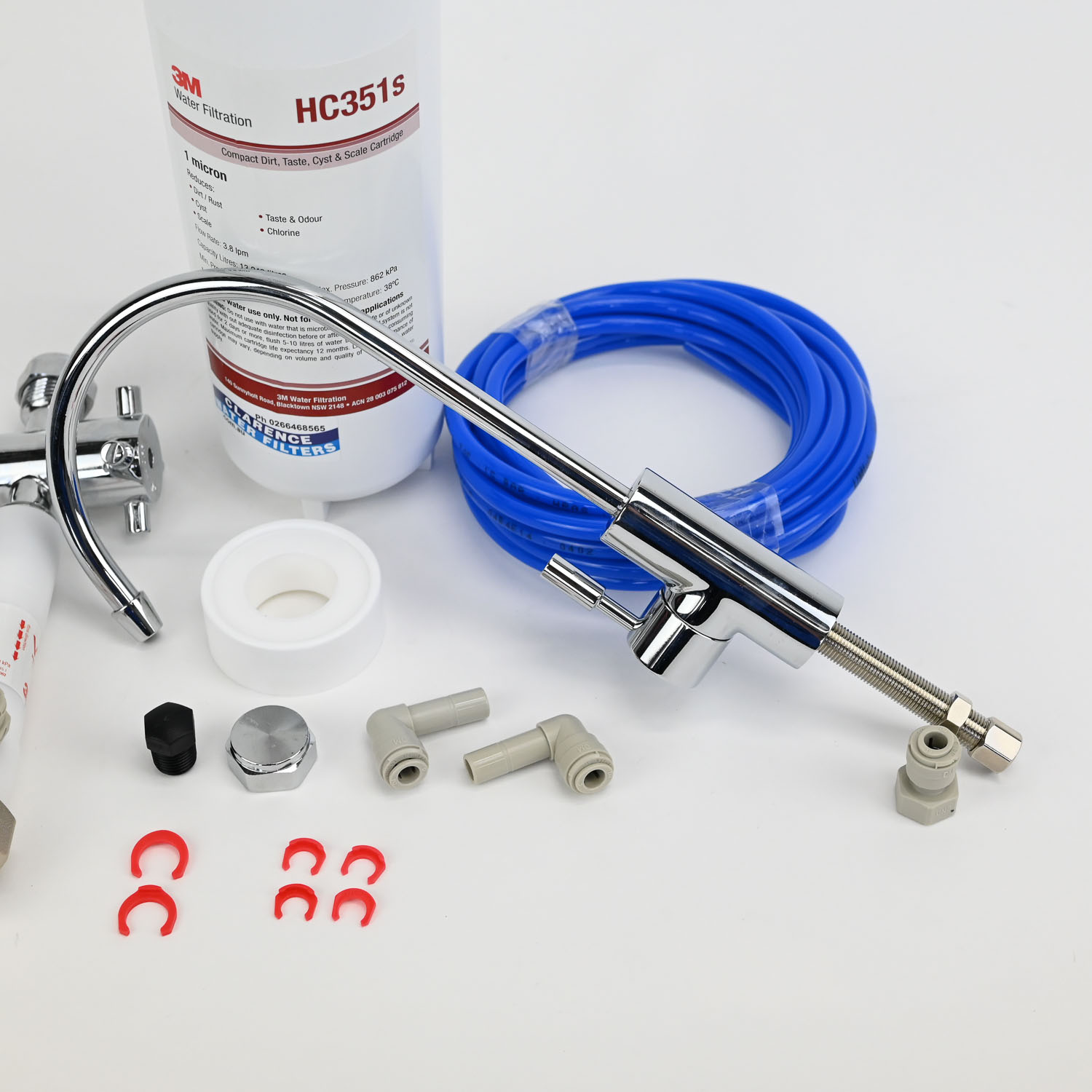

The kit includes:

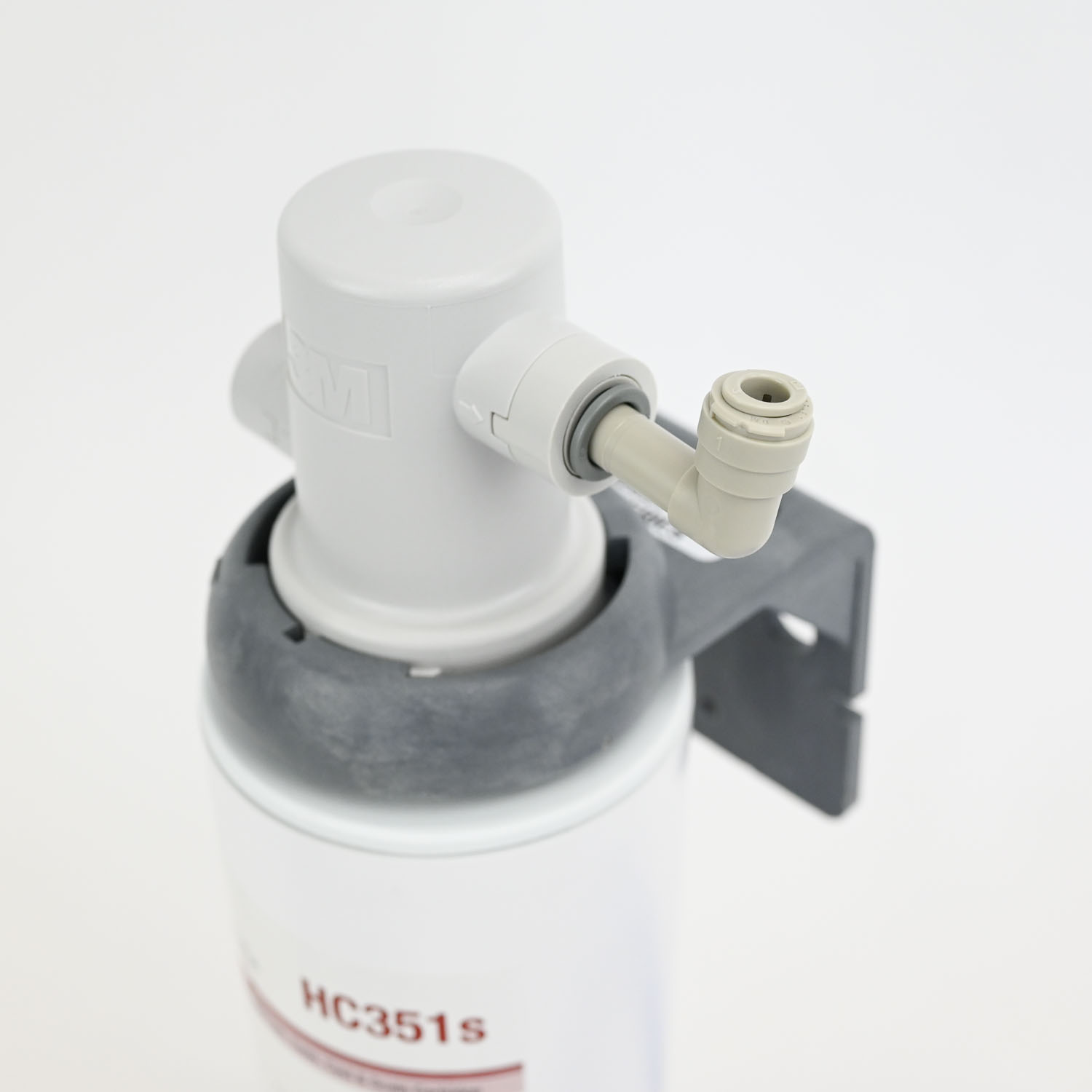

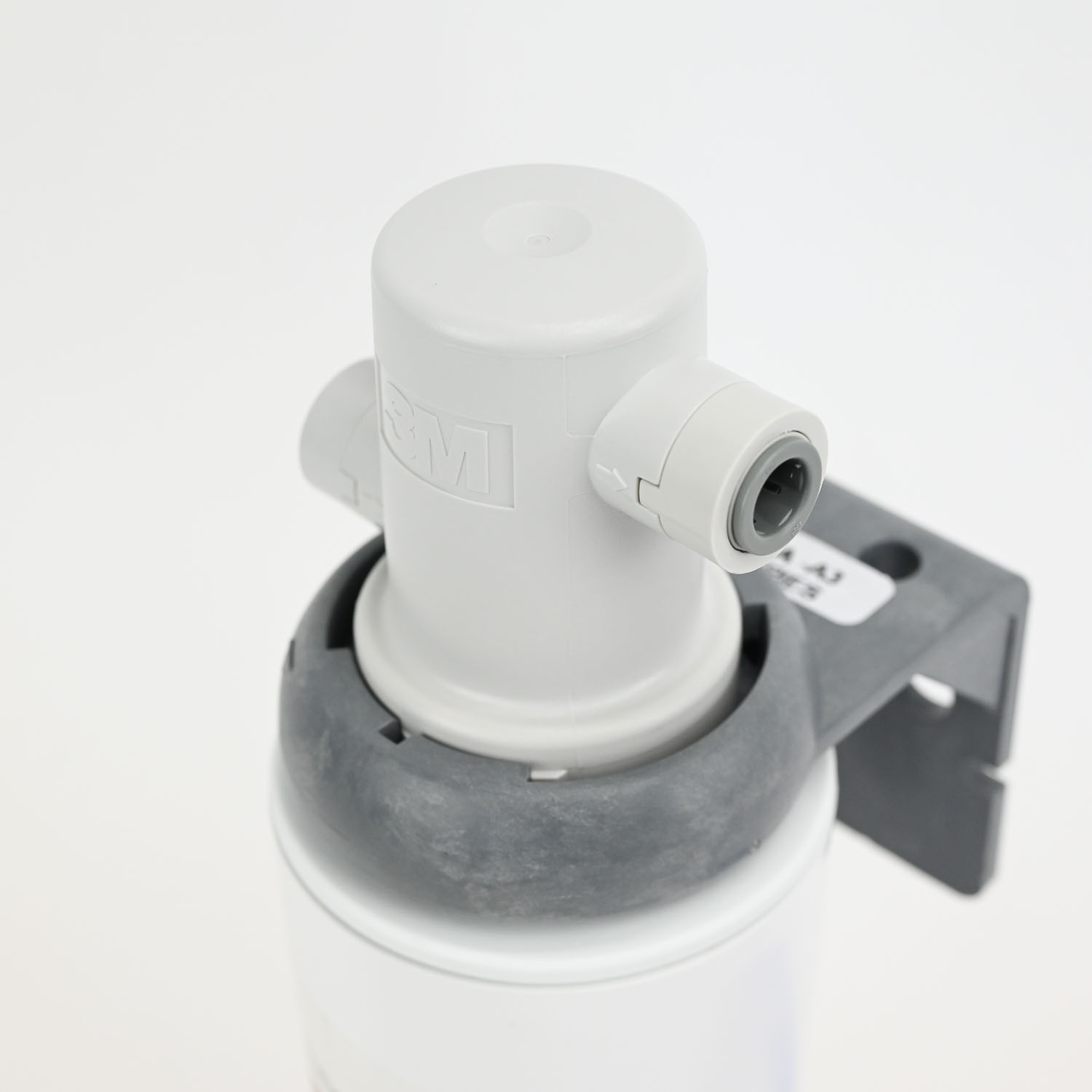

• Nep head and bracket with 1/4″ tube fittings
  High-quality Genuine 3M product with simple to use push-in tube fittings that make installation a breeze
• Filter cartridge of your choice
  Choose between several high-quality cartridges with different micron ratings, capacities and capabilities.

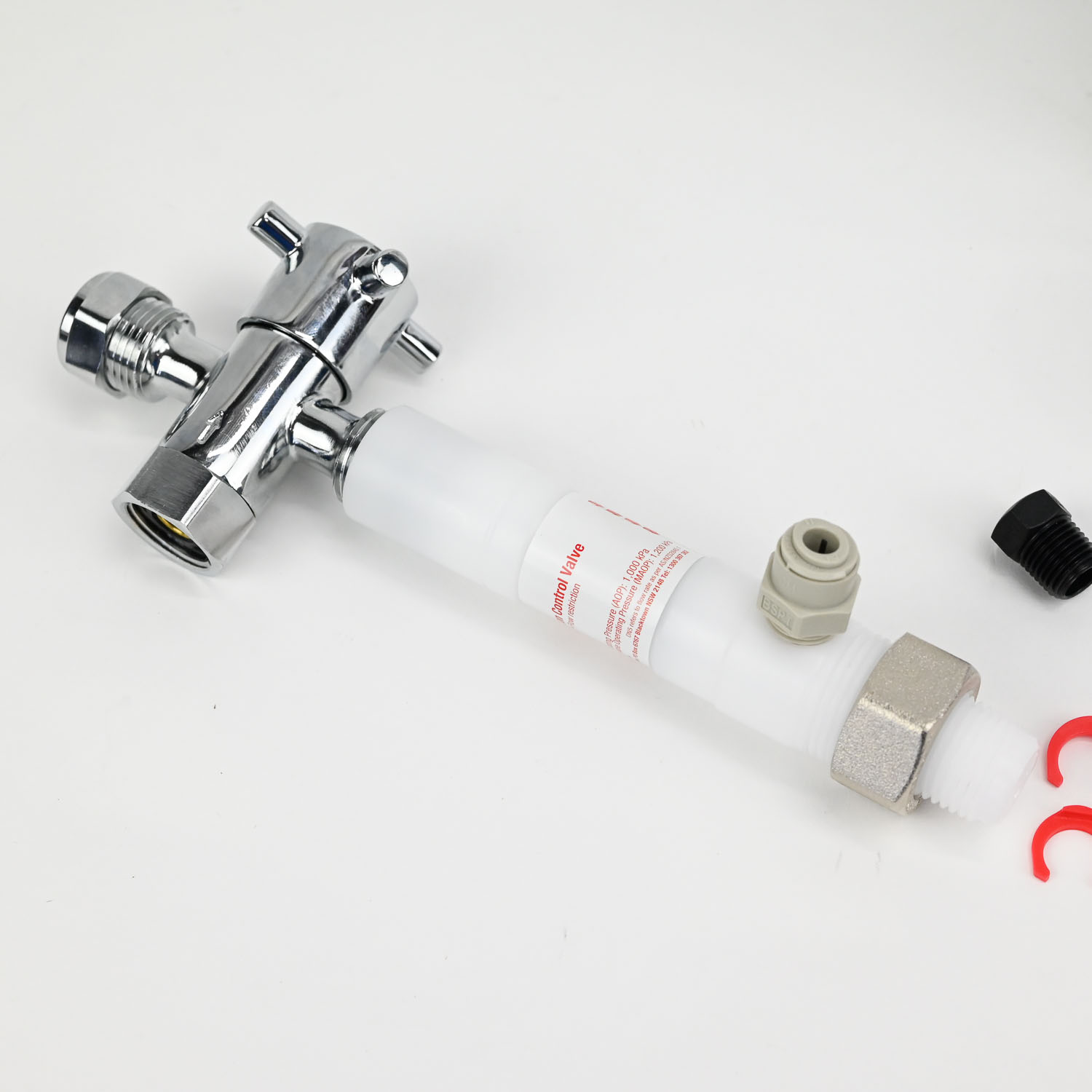

• 3M Multi function pressure limiting non return valve
  A pressure limiting valve with 3/4″ BSP and 1/2″ BSP options on the inlet side. This valve also allows you to connect a dishwasher hose as well as the water filter on the outlet end
• Tubing and fittings
  3 metres high pressure 1/4″ tubing, 7/16″ UNS female to 1/4″ tube filter tap adaptor for connecting the filter tap. Supplied with a 1/2″ female water supply shut off tap that has 2 x male outlets, allowing you to connect your braided cold water sink line and the Multi function valve to supply the filter system.

In the filter tap options you can choose between the Standard filter taps that only need a 12mm hole through the sink or bench top. Simply click on the taps option to view all the available taps.

We have a No Sink Tap option also, which means you will need to supply your own filter tap to suit 1/4″ tubing or choose one of our 3 way mixer taps.

Other fittings and bigger water lines are available on request.

Note: allow 50mm under the system for removing the filter cartridge.

Filter options available are

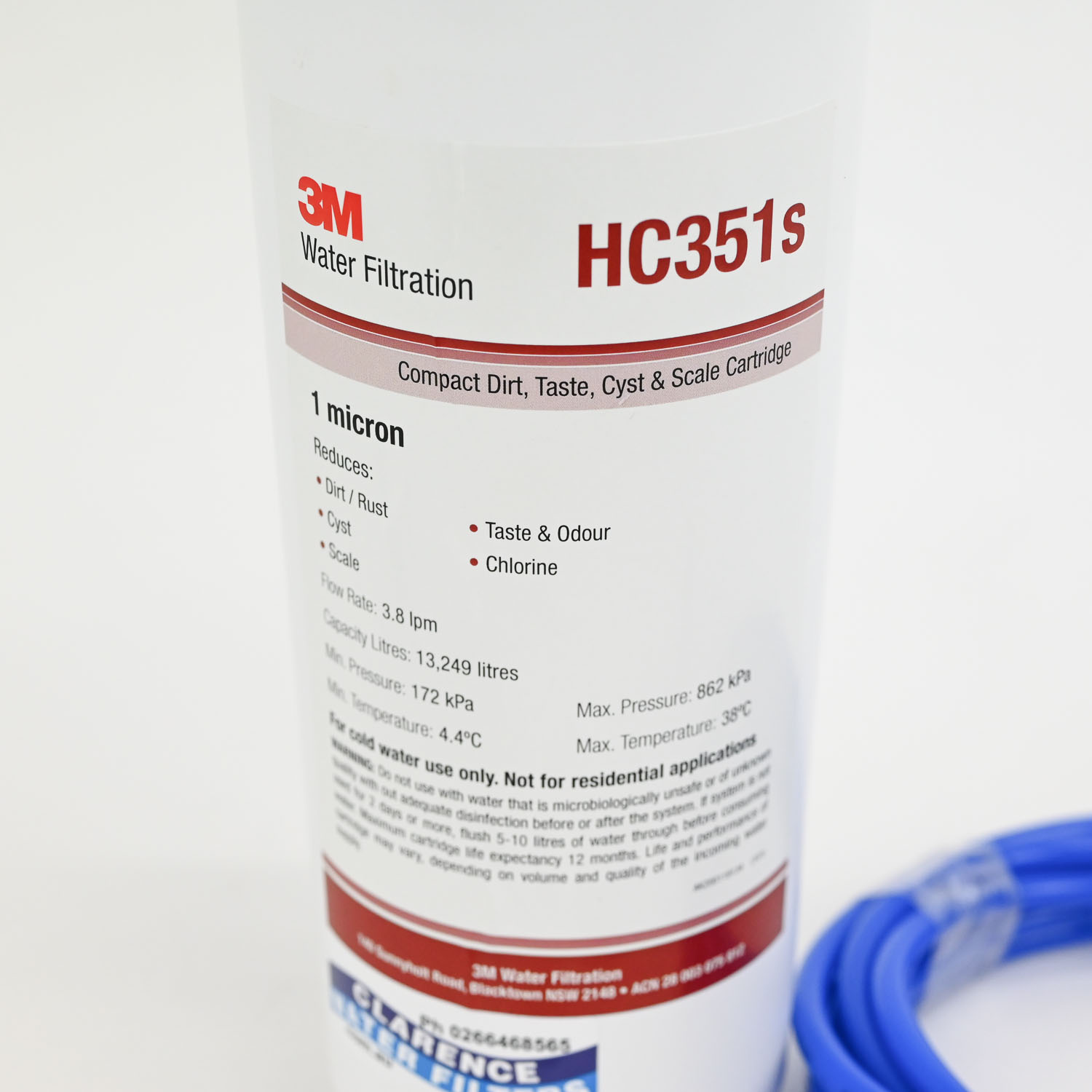

1. 3M HC351s 1 micron
Compact drinking water with some scale inhibitor

Used for filtered drinking water to remove sediment, chlorine taste and odour and Giardia and Cysts protection filtering down to 1 micron. Scale inhibitor to protect equipment for water hardness up to 140ppm. System and filter
Dimensions 295mm overall x 130mm deep x 130mm across the head and fittings. 3.8 Lpm

2. 3M HF15-MS 5 micron
Compact Scale inhibitor for harsh or dirty water and small commercial applications

Used for filtered drinking water to remove sediment, chlorine taste and odour and protection filtering down to 5 micron. Scale inhibitor to protect equipment for water hardness up to 140ppm. System and filter Dimensions 295mm overall x 130mm deep x 130mm across the head and fittings. 3.8 Lpm

3. 3M HF20 0.5 Sub-micron
For drinking water extra protection

Used for filtered drinking water to remove sediment, chlorine taste and odour and protection from Giardia and Cysts.  System and filter Dimensions 380mm overall x 130mm deep x 130mm across the head and fittings. 5.7 Lpm

4. 3M HF25 1 micron
Best value

Used for filtered drinking water to remove sediment, chlorine taste and odour and protection filtering down to 1 micron.  System and filter Dimensions 380mm overall x 130mm deep x 130mm across the head and fittings. 5.7 Lpm

5. 3M HF25-S 1 micron
Scale inhibitor

Used for filtered drinking water and coffee machines etc to remove sediment, chlorine taste and odour and scale protection filtering down to 1 micron. Scale inhibitor to protect equipment for water hardness up to 140ppm. System and filter Dimensions 380mm overall x 130mm deep x 130mm across the head and fittings. 5.7 Lpm

6. 3M HF27-S 5 micron
Scale inhibitor for harsh or dirty water and commercial applications

Used for filtered drinking water to remove sediment, chlorine taste and odour and scale protection filtering down to 5 micron. Scale inhibitor to protect equipment for water hardness up to 140ppm. System and filter Dimensions 380mm overall x 130mm deep x 130mm across the head and fittings. 5.7 Lpm

7. 3M P124BN
Extra Scale Protection commercial applications and best scale protection using Ion Exchange Resin

Used for filtered drinking water to remove sediment, chlorine taste and odour and scale protection. Scale reduction resin to protect equipment for all hard water areas and especially if over 140ppm. System and filter Dimensions 380mm overall x 130mm deep x 130mm across the head and fittings. Homes, Cafés, Clubs, Pubs, Restaurants, Motels, Offices and Machines. 1.9 Lpm.

Larger flow and capacity scale protection filters are also available if required.

Filter life will vary depending on water quality and volume used with a maximum of 12 months.

The replacement filters are listed below.
