Description

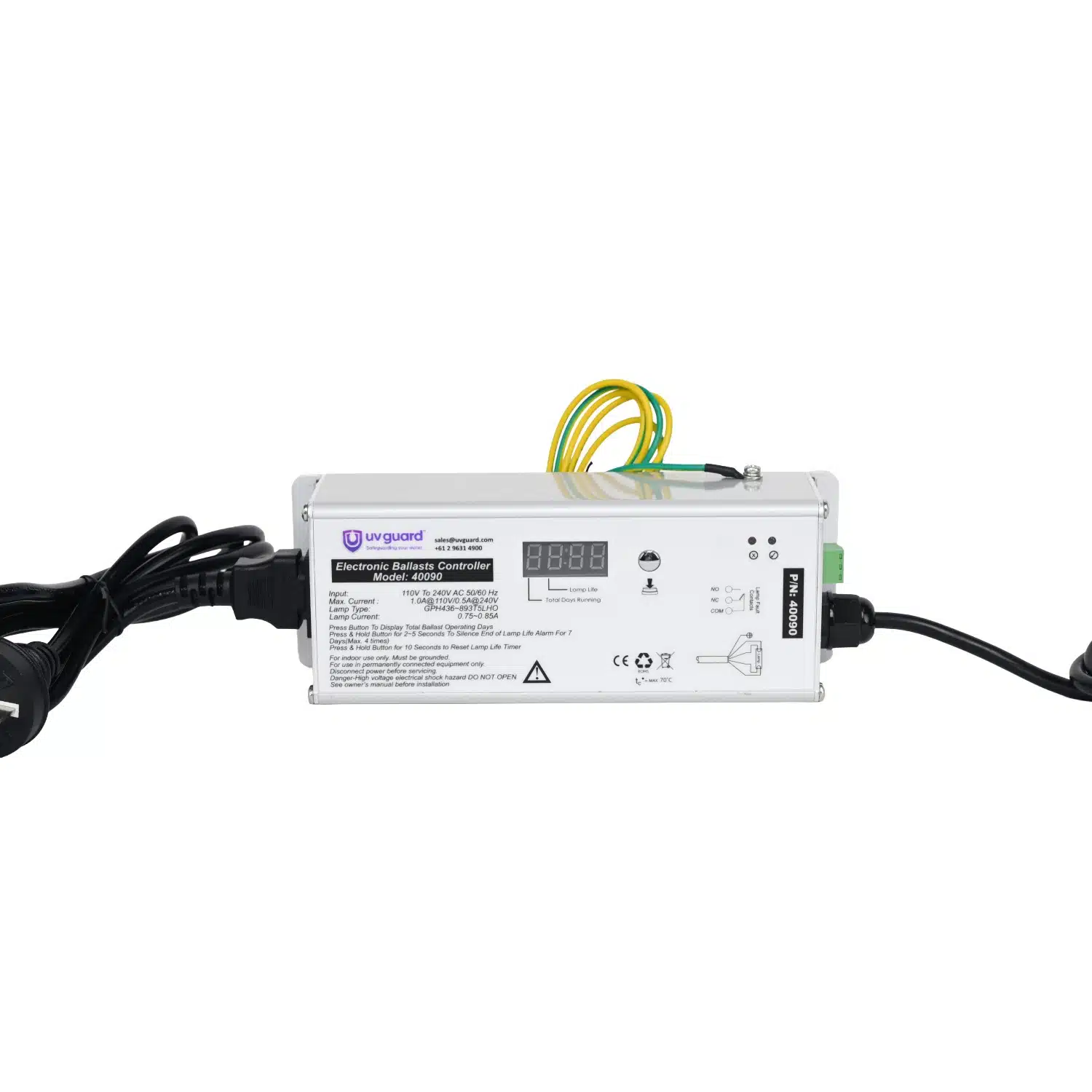

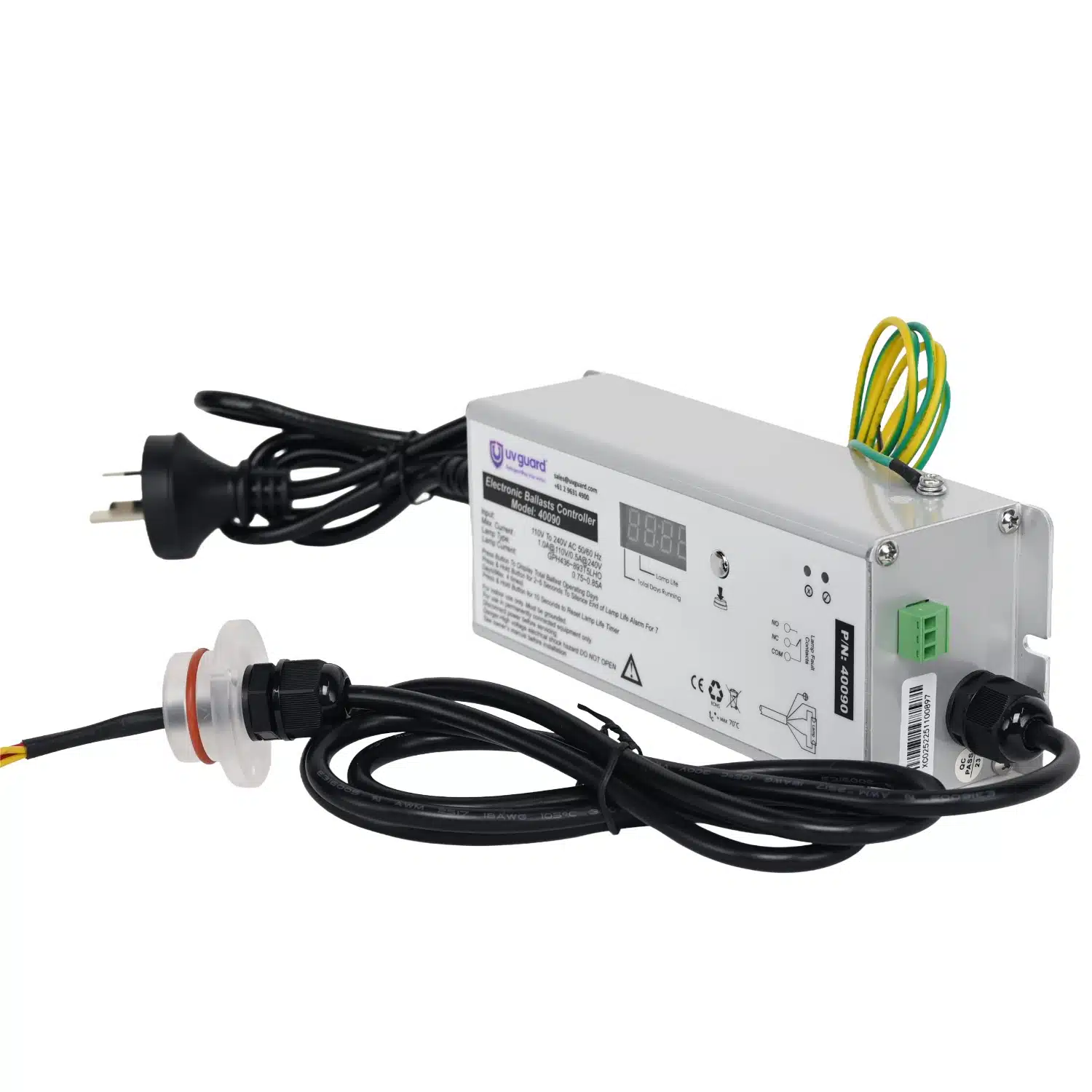

Germicidal Lamp Electronic Ballast Controller model 40090 suits 48w – 85w 4 pin UV lamps.

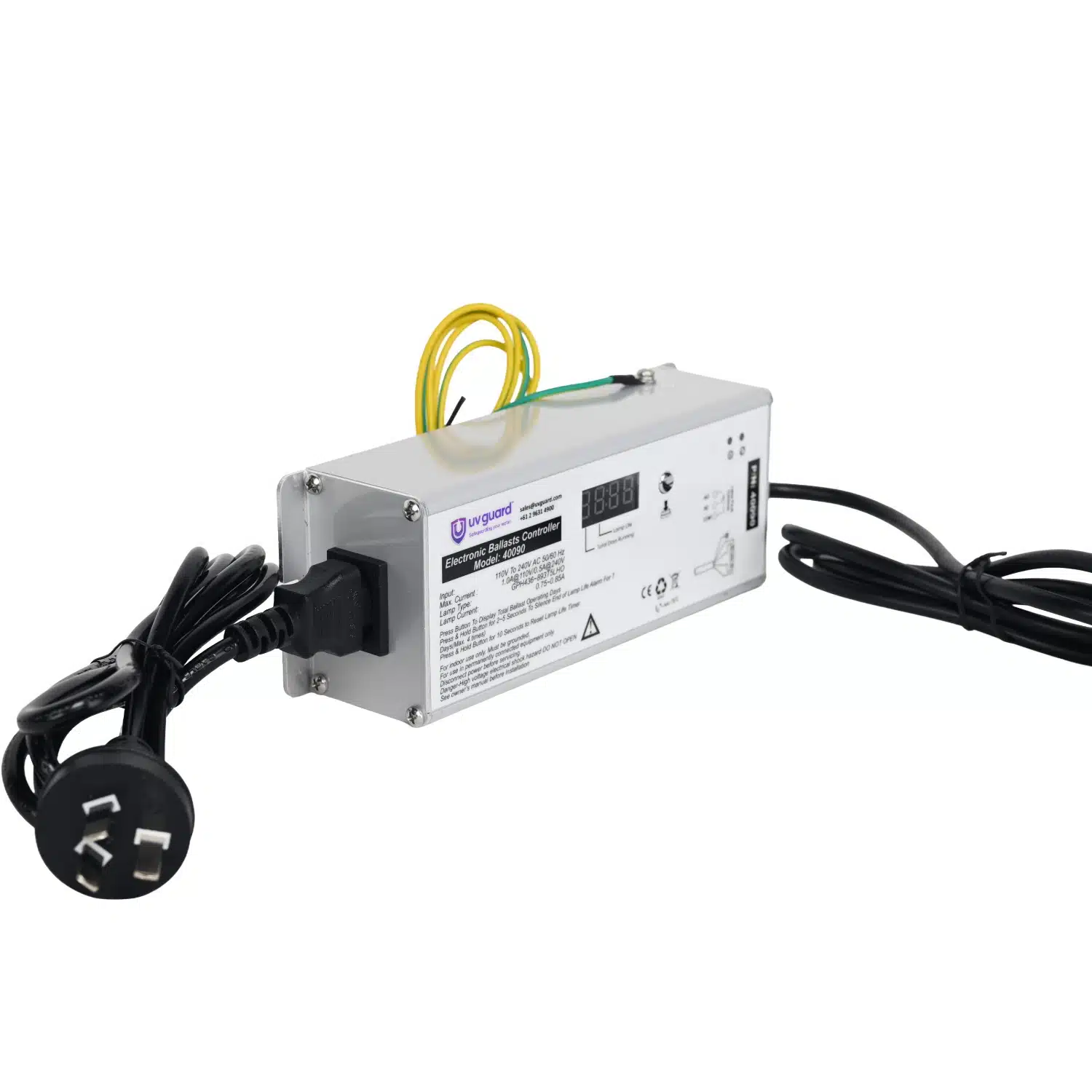

240V 3 pin plug power lead and 1 metre of lead to ballast.

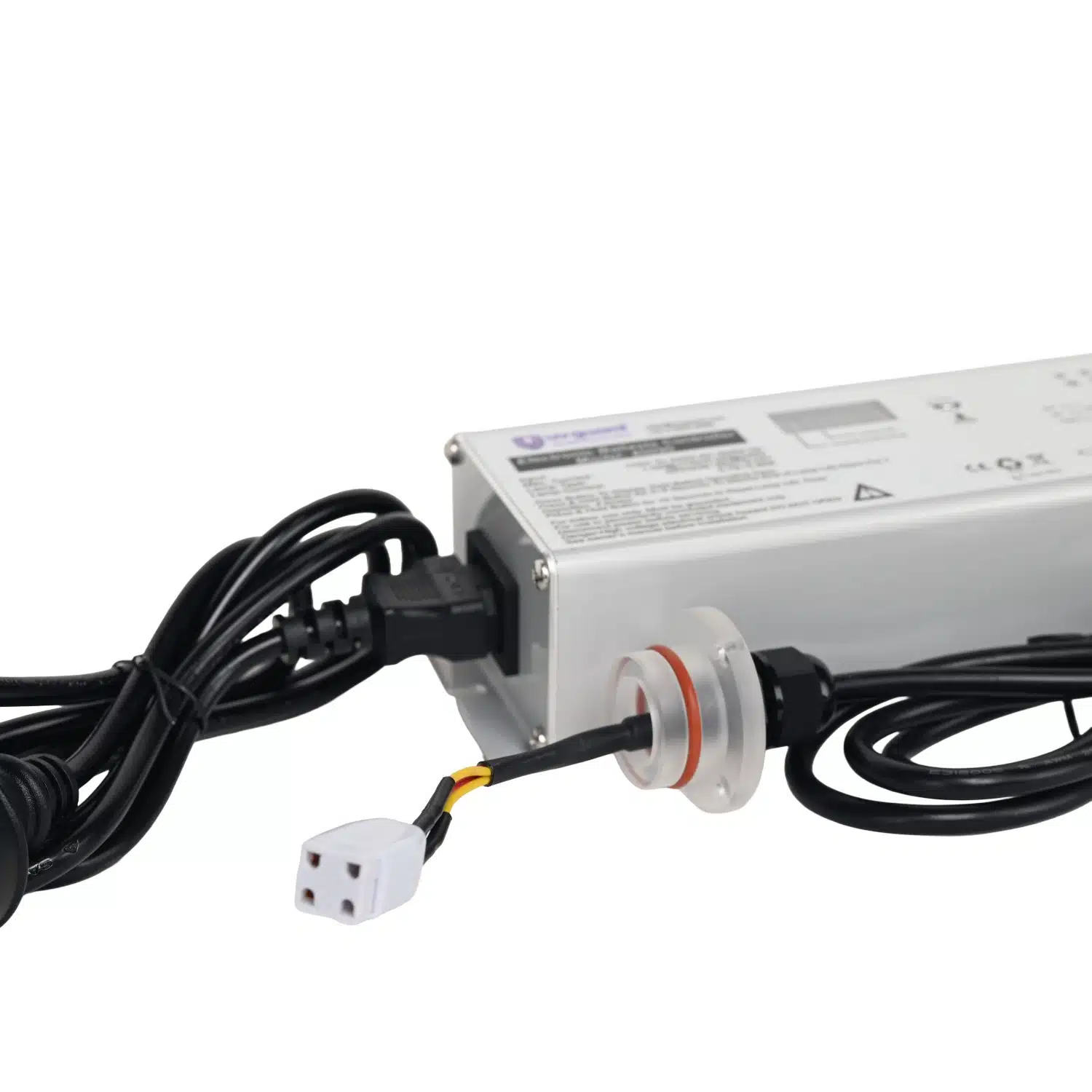

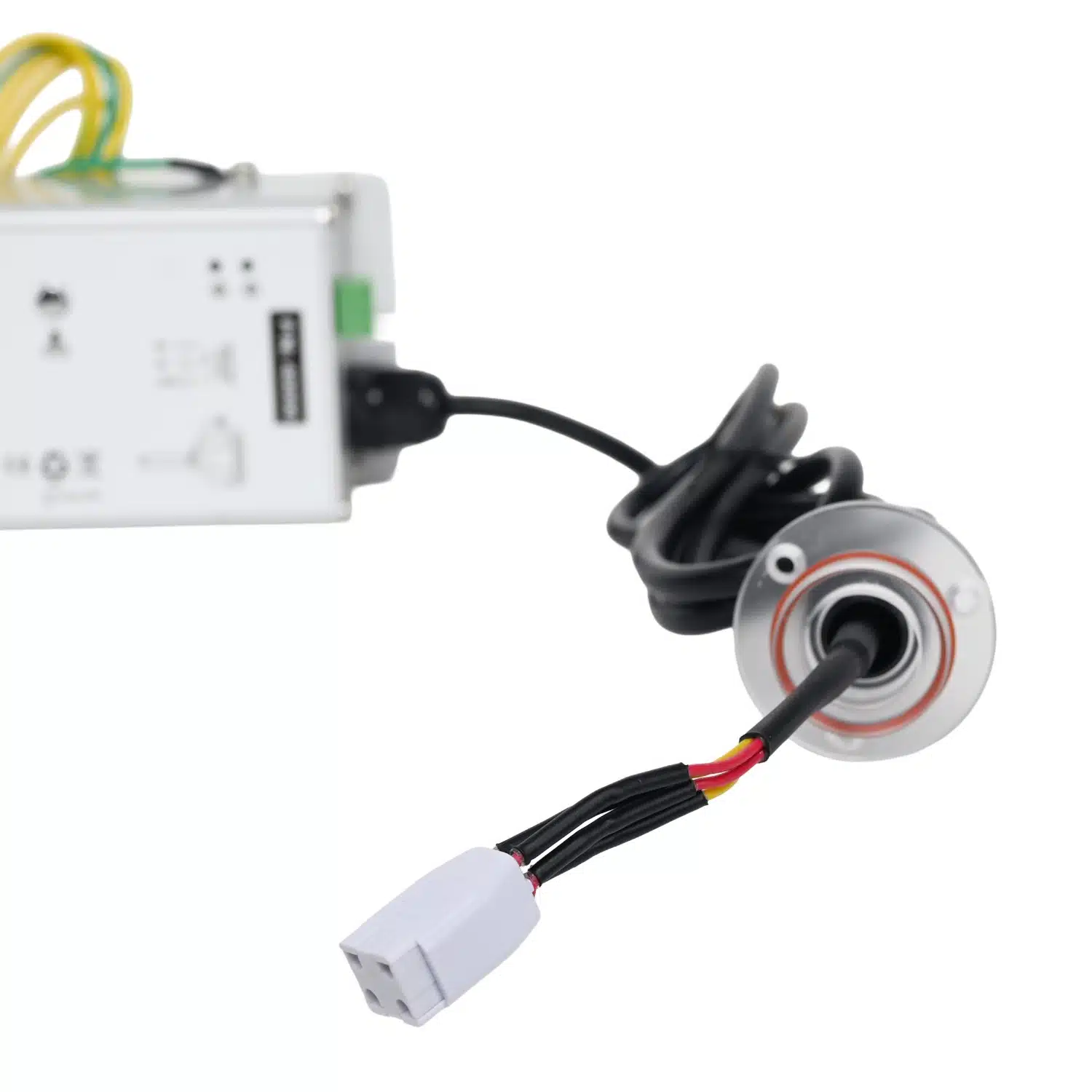

Standard 4 pin lamp socket with earth wire and flat plastic end cap with 1 metre of lead from ballast to lamp.
Suits SLT75 systems as well as UV guard and FSA systems.
Part number 40090
The 40090 power supply with count down meter suits the SLT75 and some other systems.
Suits 4 pin lamps 48w – 85 watt
max current 0.5A @ 240v. lamp current 0.75 – 85A

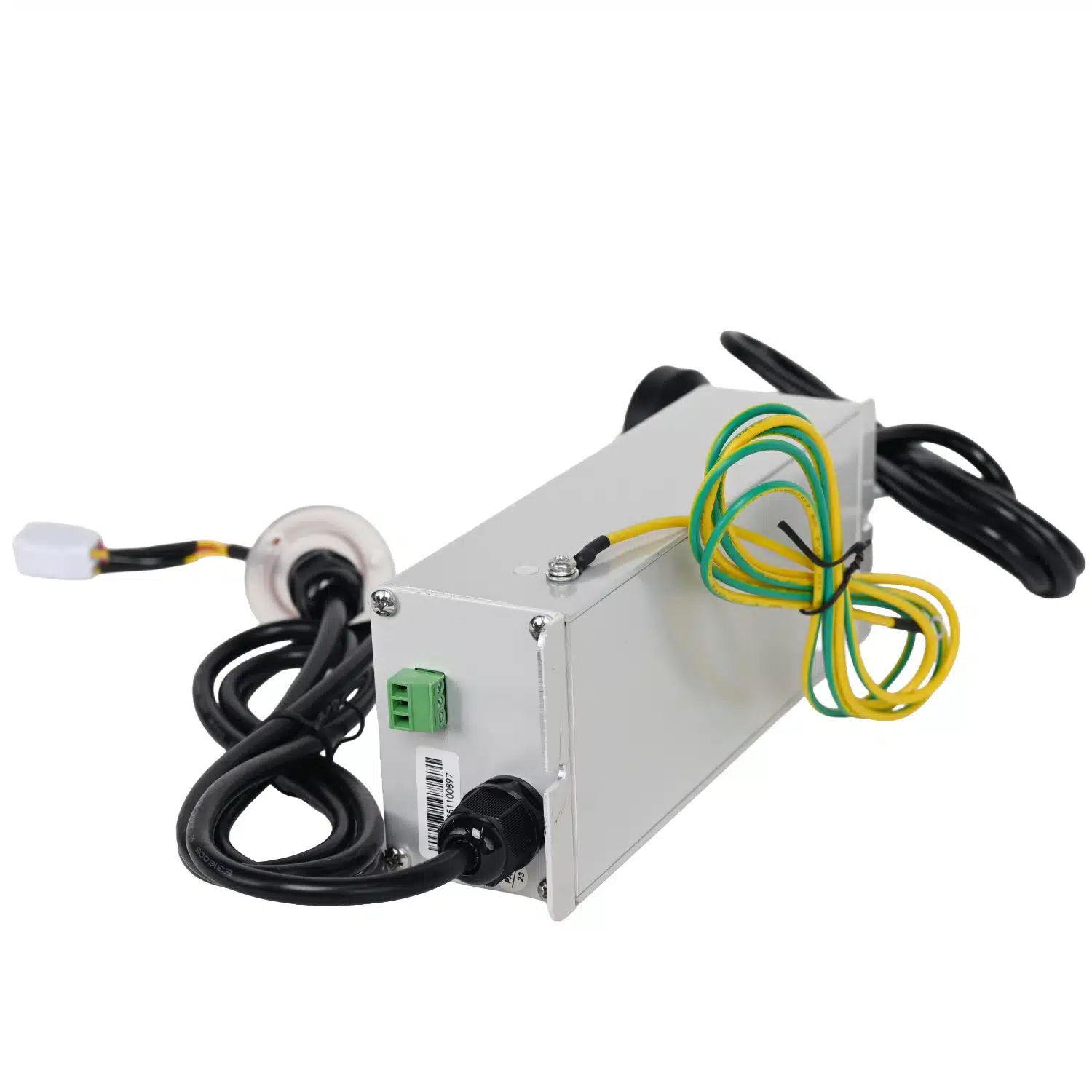

Dimensions of the metal base 210mm long x 75mm wide x 52mm high
Some of the lamps that this ballast can run, 11074, GPH436-893T5LHO
Can replace Beasun RH51-800-95L

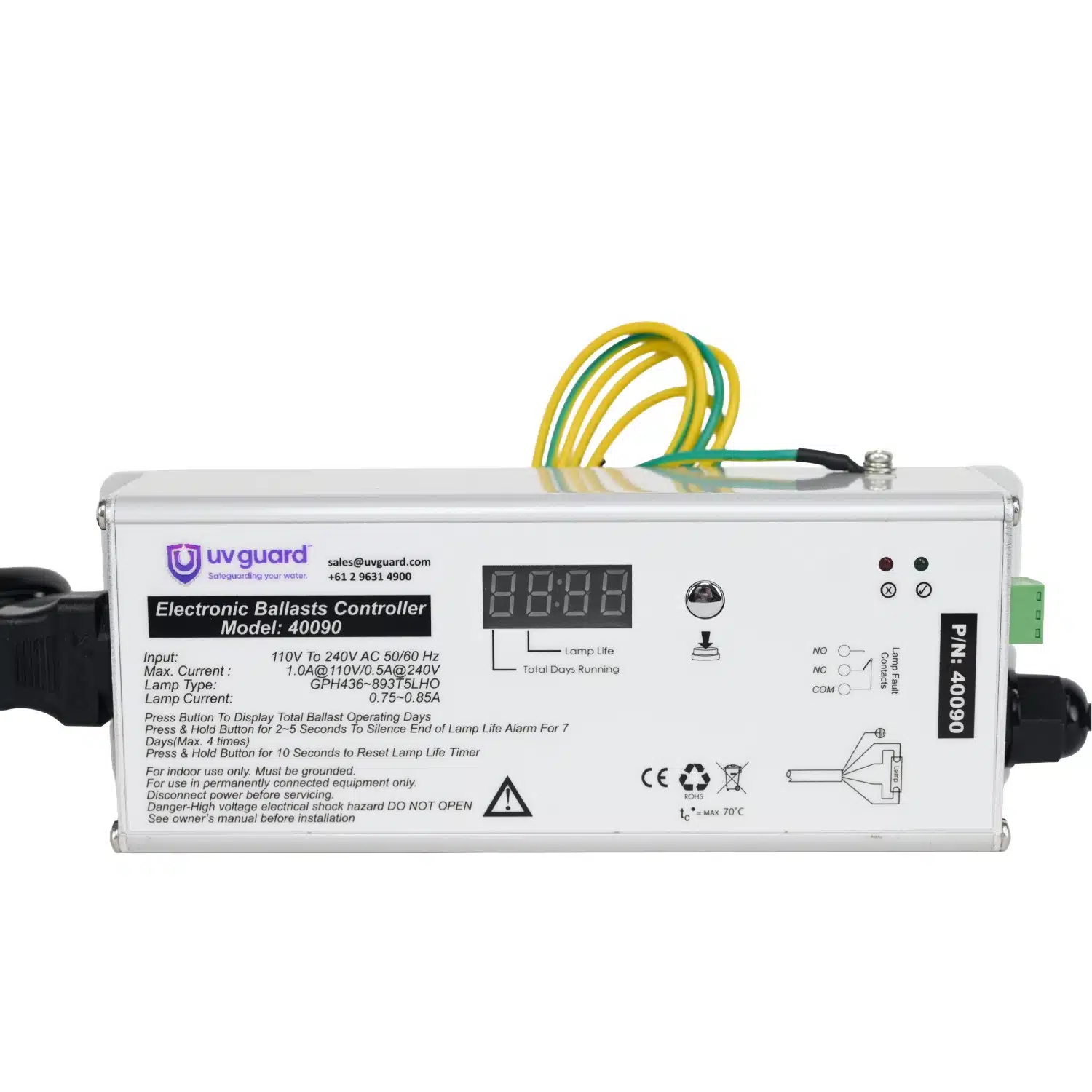

When the 40090 UV power supply is connected to a UV lamp ,switched on and operating normally, the red digital screen will initially display ‘365’ indicating 365 days of rated lamp life remaining. The green LED will also be illuminated indicating the UV lamp is operating. The red digital display will decrease each day until the screen reaches ‘0’ and the end of lamp life alarm is activated.
If the UV lamp fails the buzzer will sound on and off at 1 second intervals, the red LED will be illuminated and the remaining lamp life will stop counting down. These features will remain until the lamp is replaced and the ballast re-set. The ballast operating days will continue to count up while there is power to the ballast.
When lamp life reaches 0 the display will show “A3”, the red LED will flash and the buzzer will sound on for 1 second and off for 5 seconds.
The end of lamp life alarm can be deferred four times for a period of 7 days, to allow time to order and replace the old lamp with a new lamp. To defer the alarm, press and hold the “S” button for 5 seconds until the screen displays “dELy” then release the button and the lamp life will be re-set to 7 days and there will be no audible alarm but the Red Light will be flashing and the “A3” will be displayed. The ballast will count down from 7 to 0 days and the alarm buzzer will start again. This deferring of the end of lamp life alarm can be done 4 times. After the fourth time the buzzer cannot be stopped until the lamp is replaced and the lamp life re-set.
