Description
SLT75 80 watt 240v Ultra Violet Light Disinfection Purifier 316 SS with 1″ ports.
No micro organisms are known to be immune to Ultra Violet light, it’s effective against bacteria, mold, fungal spores, viruses & yeasts. This UV disinfection system represents an economical yet effective solution to water disinfecting without the use of chemicals and has a high flow rate. There is a very real risk of contamination in drinking water from bores, tanks & rivers throughout Australia with even some town supplies carry bacteria & Cysts, Giardia & Cryptosporidium.
This system has a high treatment flow rate which makes it suitable for a whole of house disinfecting.
It is recommended to have a 5 micron sediment filter before any UV system so the lamp’s protective sleeve does not get covered with sediment build up also by reducing the sediment all bacteria comes in contact with the Ultra Violet light. Water enters from one end and is spiraled around the Stainless Steel vessel for maximum contact time before leaving the outlet port. Depending on your water supply this unit may only need one easy service a year where you remove the lamp protective sleeve and wipe clean for best light output.
Lamps are recommended to be replaced every 12 months to keep the system working at peak bacteria killing performance. The lamp is connected to a ballast which has warning buzzer and indicator lights showing that the system is working correctly.
Ballast controllers have warning LED indicators as well as a warning lamp failure sound.
Choice of ballast options available.
Standard 40089 or the 40090 with 365 day lamp life count down meter.
The UV vessel is made from 316 Stainless Steel rated at 120psi and has two mounting clips.
These systems are usually mounted vertically but can be mounted horizontally as well.
The UV vessel has 1″ bsp inlet & outlet ports.
Dimensions 950mm x 100mm
For Non-potable water use a 30 mJ/cm² flow rate of 80 Lpm can be achieved.
Maximum killing capacity with a 40 mJ/cm² flow rate of 60 Lpm which meets the Minimum Australia Standards for UV dosage for potable drinking water.
240v ballast cord and plug 80 watt 4 pin lamp.
2 Year warranty on S/S chamber and 1 year on ballast, subject to usage. Not suitable for saltwater applications.
Replacement lamp Part No: UV Lamp 80w 4P F Part No: 11074
Replacement Quartz Thimble Part No. 20310
Replacement o-ring seal Part No: 31001
Replacement ballast Part No: 40090 count down meter or 40089 standard ballast

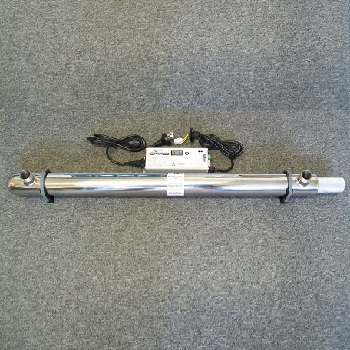

Listing picture is of the count down meter ballast, please use the product options to select the ballast type.
