Brass Female Bsp to Male Bsp Thread Fittings

Description

Female Bsp to Male Bsp Brass Fittings.

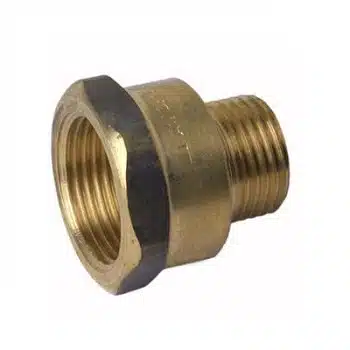

Picture illustrated is of the 3/4″ F x 1/2″ M

Available sizes

BSP 1/2″ F x 1/4″ M (15FI x 6MI)

BSP 1/2″ F x 3/8″ M (15FI x 10MI)

BSP 3/4″ F x 1/2″ M (20FI x 15MI)

BSP 1″ F x 3/4″ M (25MI x 20MI)

Thread Type and Size Chart

BSP size (British Standard Pipe sizes are not the measured actual size)

BSP Size         Actual Diameter Imperial        Actual Diameter Metric

1/8” BSP               0.35 inch                                     9 mm

1/4” BSP               1/2 inch                                      12 mm

3/8” BSP               6/10 inch                                    15 mm

1/2” BSP               3/4 inch                                      19 mm

3/4″ BSP               1 inch                                          25 mm

1”  BSP                  1 & 1/4 inch                               31 mm
