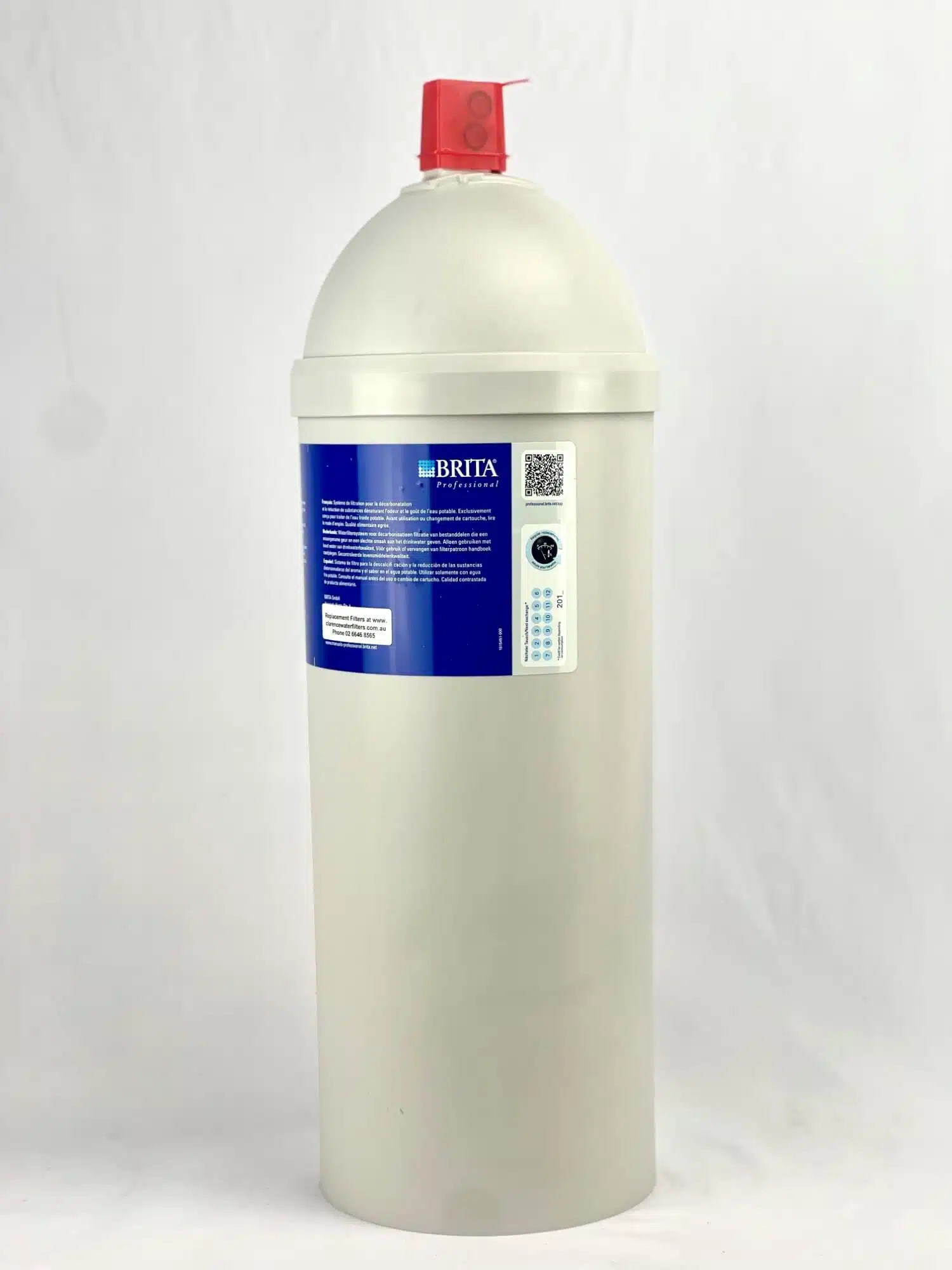

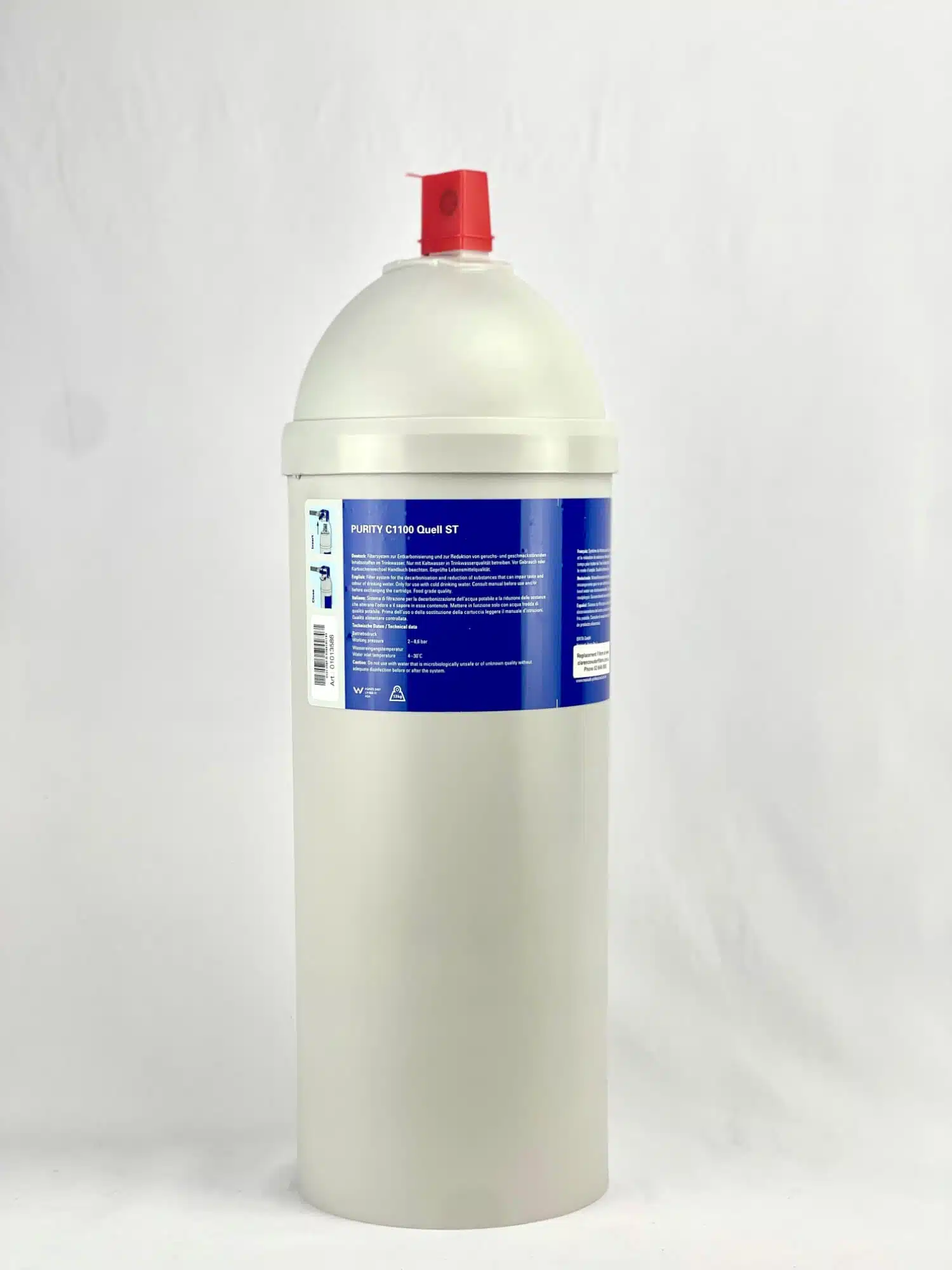

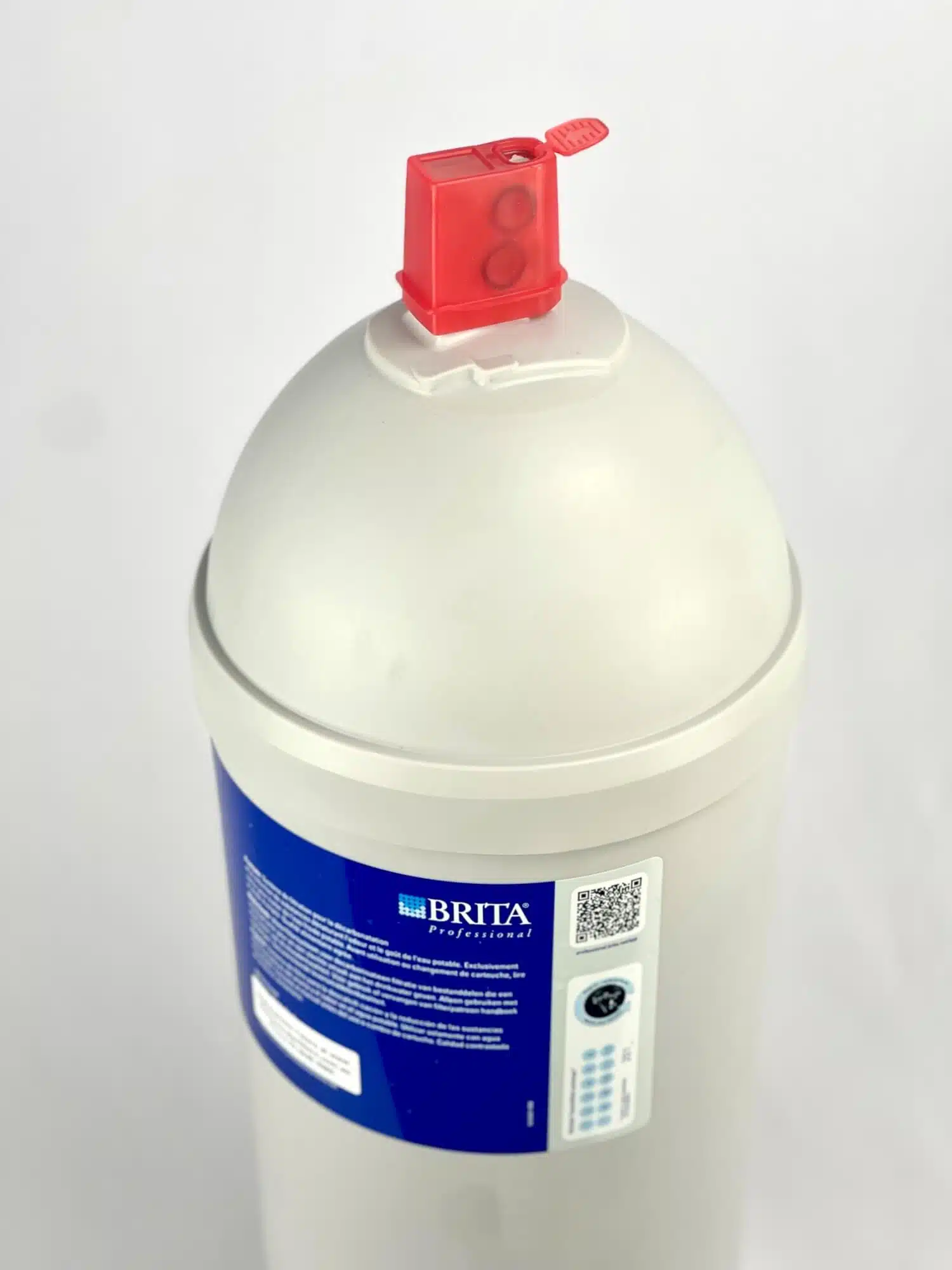

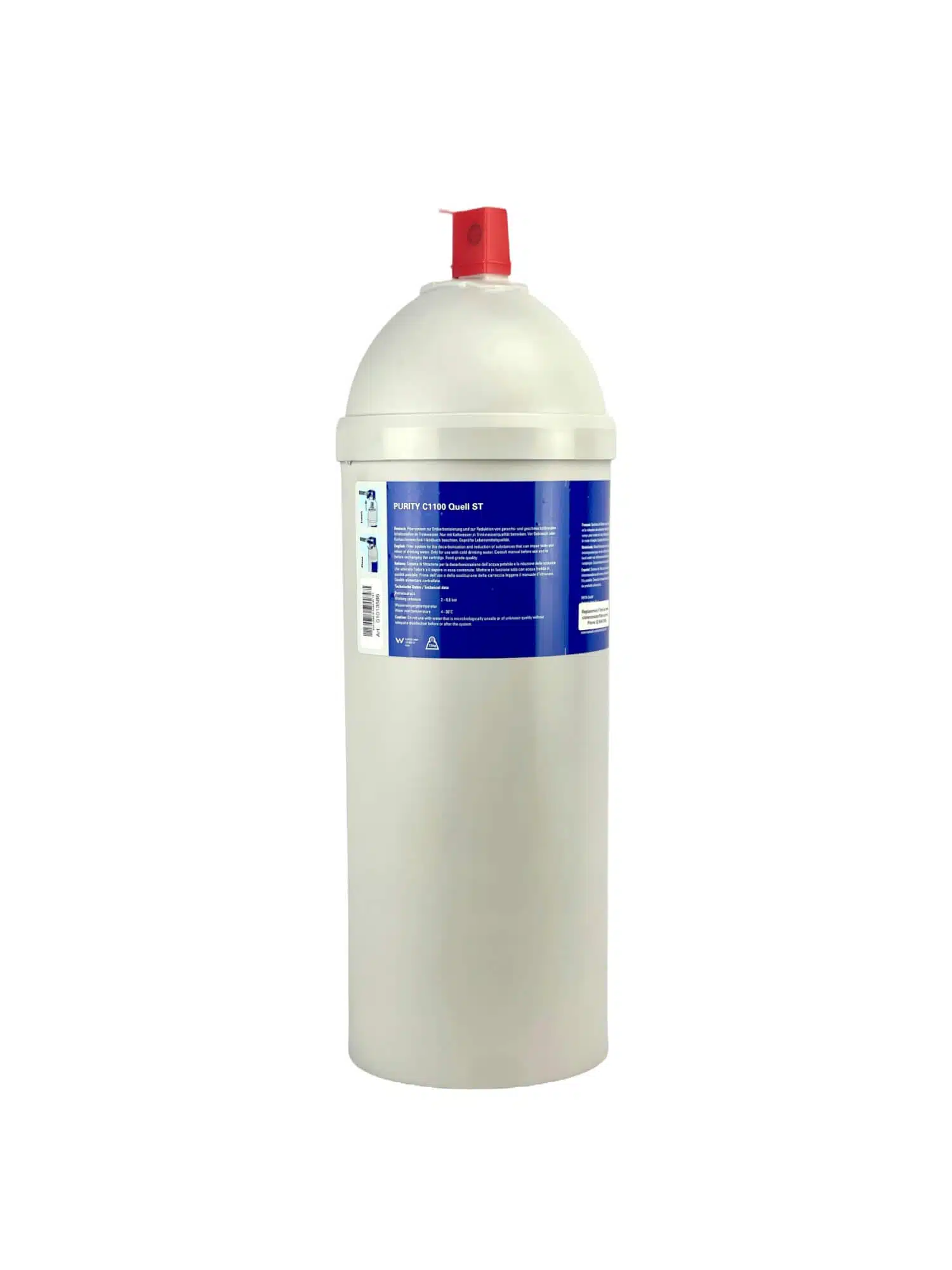

Brita Purity C1100 Quell ST Water Filter

Description

Purity C1100 Quell ST Brita quick change filter cartridge Decarbonation filter.

PURITY C Quell ST filter cartridges reduce the carbonate hardness in drinking water, thus preventing scale deposits in the downstream terminal equipment.

Ideal for:

• Coffee & Expresso Machines
• Hot & Cold Vending Machines
• Combi Ovens & Conventional Ovens

Depending on the by-pass setting, calcium, magnesium and metal ions can be selectively reduced from the drinking water during the flow process. In addition to cloudiness and organic pollutants, the filter material also reduces the level of substances impairing smell and taste, such as chlorine residues in the filtrate and in the by-pass water.

Typical areas of application for PURITY C Quell ST are coffee and espresso machines, hot and cold drink vending machines as well as combi ovens and conventional ovens.

Brita C1100 Quell ST Filtration Stages

1. Pre-filtration reduces coarse particles
2. Carbonate hardness reduction an ion exchange reduces the carbonate hardness content and prevents scale deposits
3. Activated carbon filtration substances that can impair taste and odour are eliminated
4. Fine filtration retains particles measuring up to 10 µm

Variable head by-pass settings to suit water conditions.

Brita C1100 Quell ST Setting Guidelines

Below are a few setting to use as a guide.

Capacities for Coffee and Espresso Machines and Vending Machines in areas with soft to low hardness up to 140 ppm:

•  by-pass setting at 50% = 17070 litres

Capacities for Coffee and Espresso Machines and Vending Machines in areas with moderately hard water up to 210 ppm:

• by-pass set at 30% = 8300 litres.

Capacities for Combi Steamers and Conventional Ovens in areas with soft to low hardness up to 140 ppm:

• by-pass setting at 0% = 8984 litres
• by-pass set at 10% and hardness up to 140 ppm = 9883 litres

Capacities for Combi Steamers and Conventional Ovens in areas with moderately hard water up to 210 ppm:

• by-pass set at 0% = 5990 litres
• by-pass setting at 10% = 6589 litres

Let us know your water hardness reading and we can advise you on the best by-pass setting to suit your local water.

Brita Purity C1100 Quell ST Water Filter Specifications

• Dimensions; 545mm overall x 190mm across
• Part number: 1013585
• Max. operating pressure: 8.6 bar
• Water intake temperature: 4 – 30 °C
• Flow rate with 1 bar pressure loss: 150 l/h
• Nominal flow: 60 l/h 100 l/h
• Pressure loss at nominal flow: 0.25 bar 0.5 bar
• Weight (dry/wet): 7.7/12.5 kg
• Operating position: Horizontal and vertical
