Complete Caravan or RV Under Sink Water Filter Kit

Description

Complete Caravan and RV Under Sink Drinking Water Filter System

A complete kit that includes a high-quality American-made Omnipure K2567 water filter and your choice of dedicated drinking water tap.

A compact inline filtration solution ideal for caravans and RVs with limited space under their sink.

Includes everything you will need to purify your drinking water, including the water filter, tubing, fittings, and a dedicated drinking water tap.

Deals with a wide range of contaminants commonly found in Australian water, including sediment, dirt, sand, silt, rust, chlorine, chloramines, pesticides, herbicides, and much more.

Will make your water more palatable and much safer to drink as you travel around Australia.

Triple action filter with sediment pads, activated coconut carbon, and KDF55 to provide complete protection.

Also offers scale reduction, which is useful for travellers who intend to visit parts of Australia with hard water.

Rated at 1 micron, so will offer some protection from parasitic cysts including  Cyclospora, Giardia, and Cryptosporidium — helping to keep you and your family safe when using tank or bore water.

This system is designed for use with a dedicated drinking water tap. We do have a no tap option if you already have your own dedicated filtered water tap.
If you would like a high-flow water filtration solution for under your sink, take a look at the BESTWF or BESTHC with 12mm fittings.

If you are interested in improved scale protection, check out our 3M™ Under Sink Caravan and RV Filter Kit.

Features and Benefits

• Dramatically Improves The Taste and Odour of Your Water
  Both of the filters available with this system use high-quality activated coconut carbon. It reduce any bad flavours or odours in your water, which is handy when travelling around Australia and being forced to used smelly or bad tasting water.
• Easy Installation
  Our Under Sink Caravan and RV Filter Kit comes with everything you will need to get started. It connects to standard 12mm tubing commonly used in caravans and RVs. If you have an unusual setup, contact us and we will help you find a solution.
• Affordable Replacement Filters
  Replacement filters are easy to find and much more affordable than other comparable filters. This means you can afford to take several backup filters with you on the road and change them as needed.
• Ultra Fine Filtration
  Filters sediment particles down to 1 micron (nominal). This is about 70 times finer than a human hair and 20 times finer than the smallest object visible with the naked eye. Traps a huge range of particulates, making your water look, smell, and taste better.
• Suitable For Small Spaces
  The Omnipure K2567 is a compact inline filter which can be installed vertically or horizontally. It is small enough to be placed behind drawers or in tight spaces. Because it is an inline filter, it can be positioned vertically or horizontally which makes it easier to find a suitable spot. Additional 1/4″ tubing can even be purchased which lets you place the filter in a location further from your tap.
• Alternate Filters Available
  The Complete Under Sink Caravan Water Filter Kit will work with any of the Omnipure K-series filters. This means you can change out the type of filter in the unit to suit the type of water you will be encountering.

What Contaminants Does It Reduce?

This unit can reduce a wide range of contaminants including:

• Chlorine
• Bad tastes and odours
• Sediment including sand, silt, rust, dirt, algae, and insoluble metal particles
• Disinfection by-products including Trihalomethanes
• Pesticides
• Herbicides
• Pharmaceutical compounds
• Volatile organic compounds (VOC)
• Polychlorinated biphenyls
• Petrochemicals
• Scale and more

Specifications

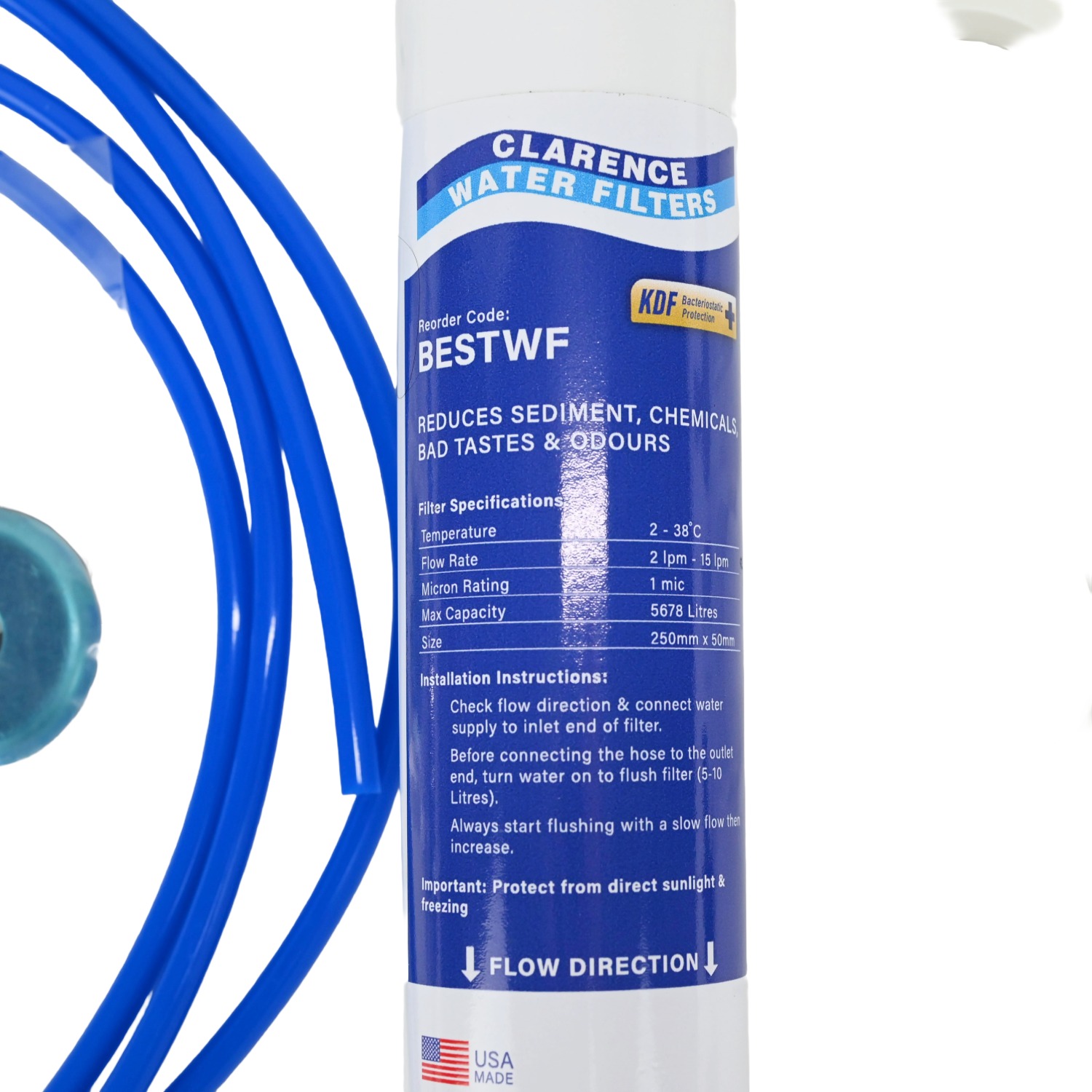

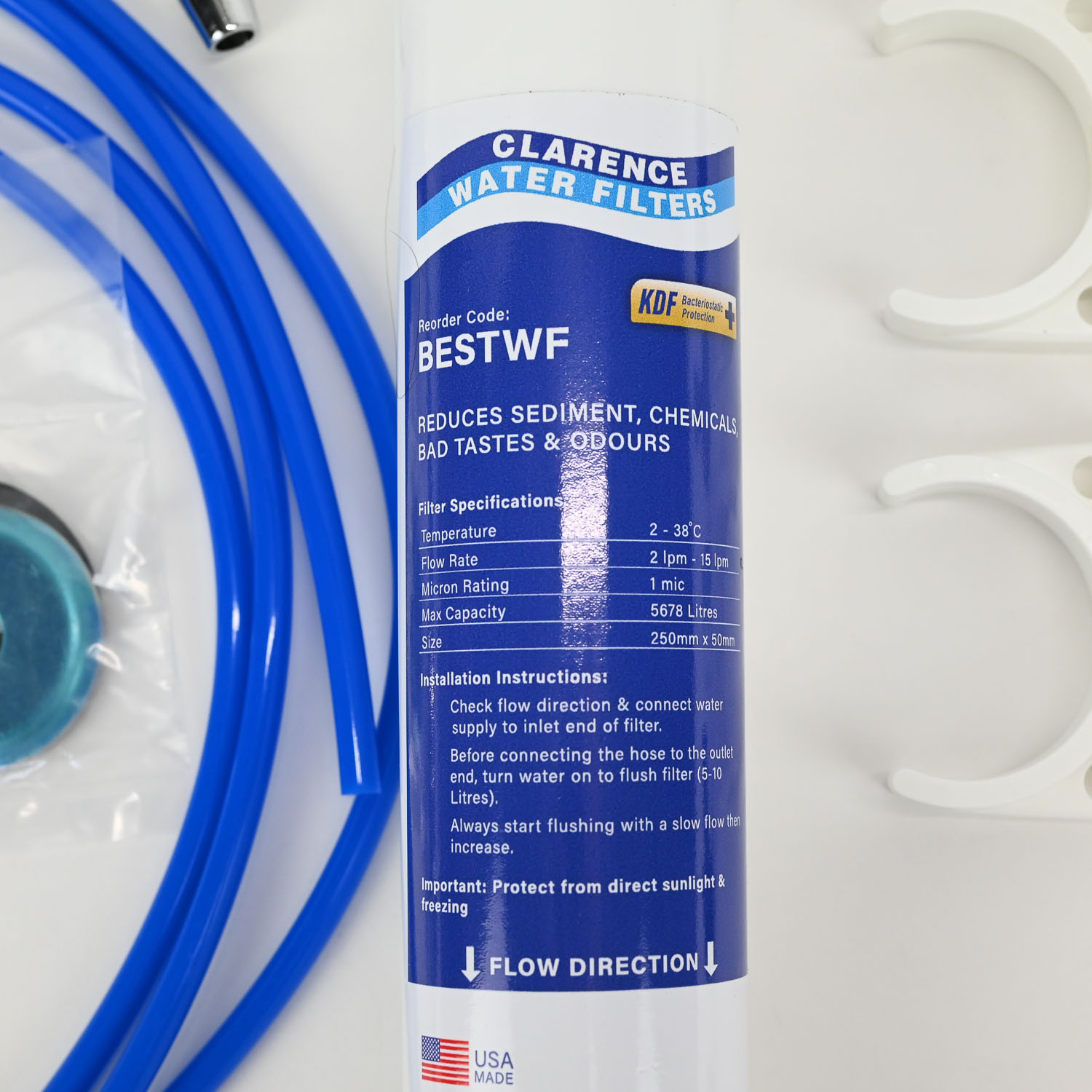

• Replacement Filter Part Number: Omnipure K2567
• Micron Rating: 1 micron nominal
• Filter capacity: 5678 litres (Chlorine reduction capacity)
• Dimensions: 255mm x 50mm (without fittings) or 264mm x 50mm (with 1/4″ tube fittings)

Other fittings sizes available on request.

Filtration Process

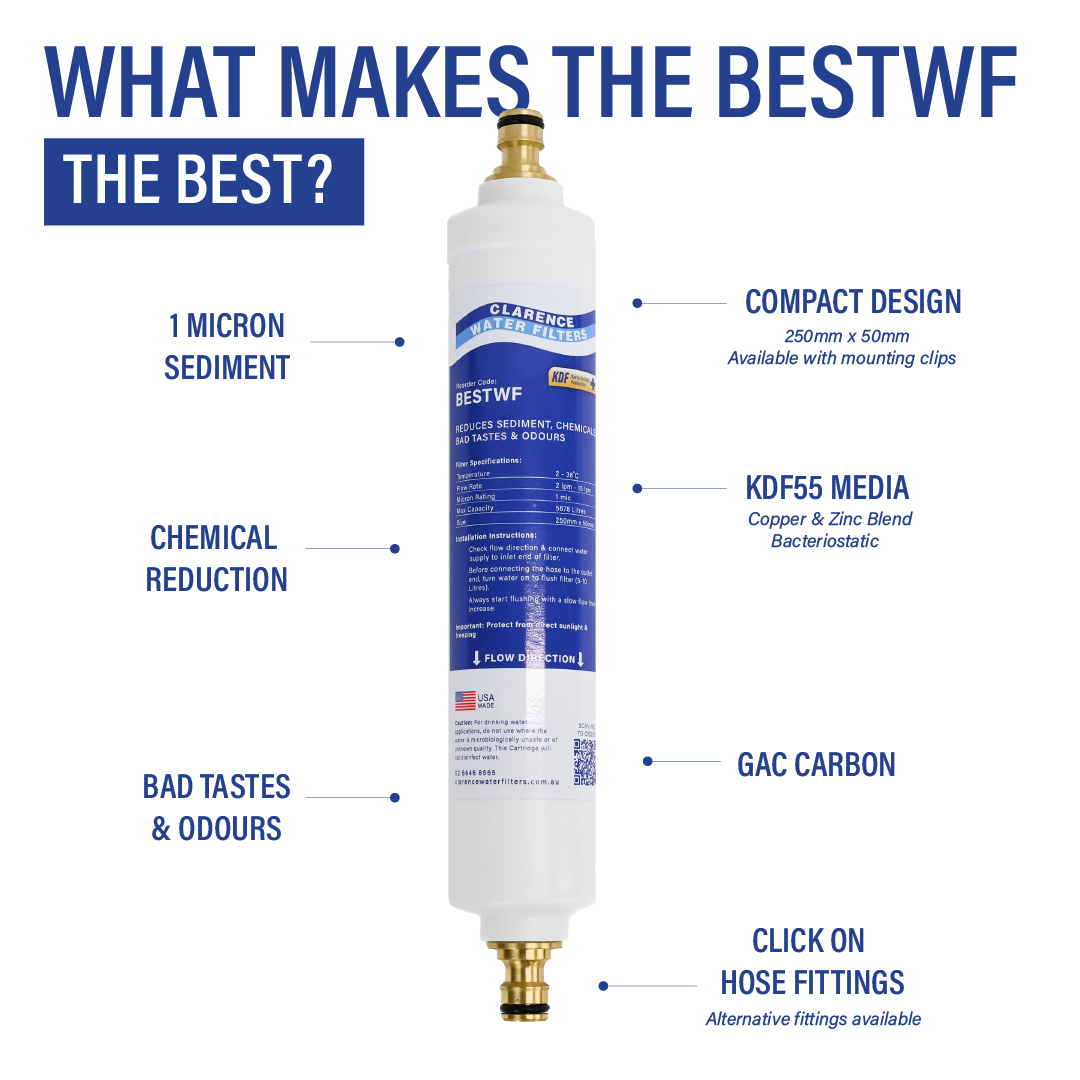

The Under Sink Caravan Filter Kit uses the triple action Omnipure K2567. The filtration process consists of:

Stage 1: Sediment Filtration

Water enters the filter and flows through a 1 micron sediment pad. This pad catches a huge variety of particulates including sand, silt, dirt, rust, and algae. Removing these contaminants improves the taste, odour, and appearance of your water. Also protects the appliances inside your caravan or RV from damage.

Stage 2: KDF 55

KDF 55 is a proprietary blend of copper and zinc. As oxygenated water flows through this mixture of metals, certain contaminants will lose or gain electrons. Reduces active chlorine, heavy metals, and minerals which form scale.

The copper in KDF 55 also makes it bacteriostatic, which means it can kill or incapacitate bacteria developing inside the water filter cartridge.

Stage 3: Activated Coconut Carbon

Activated carbon will adsorb a huge range of chemicals, including chlorine, volatile organic compounds, petrochemicals, and much more.

What’s In The Box?

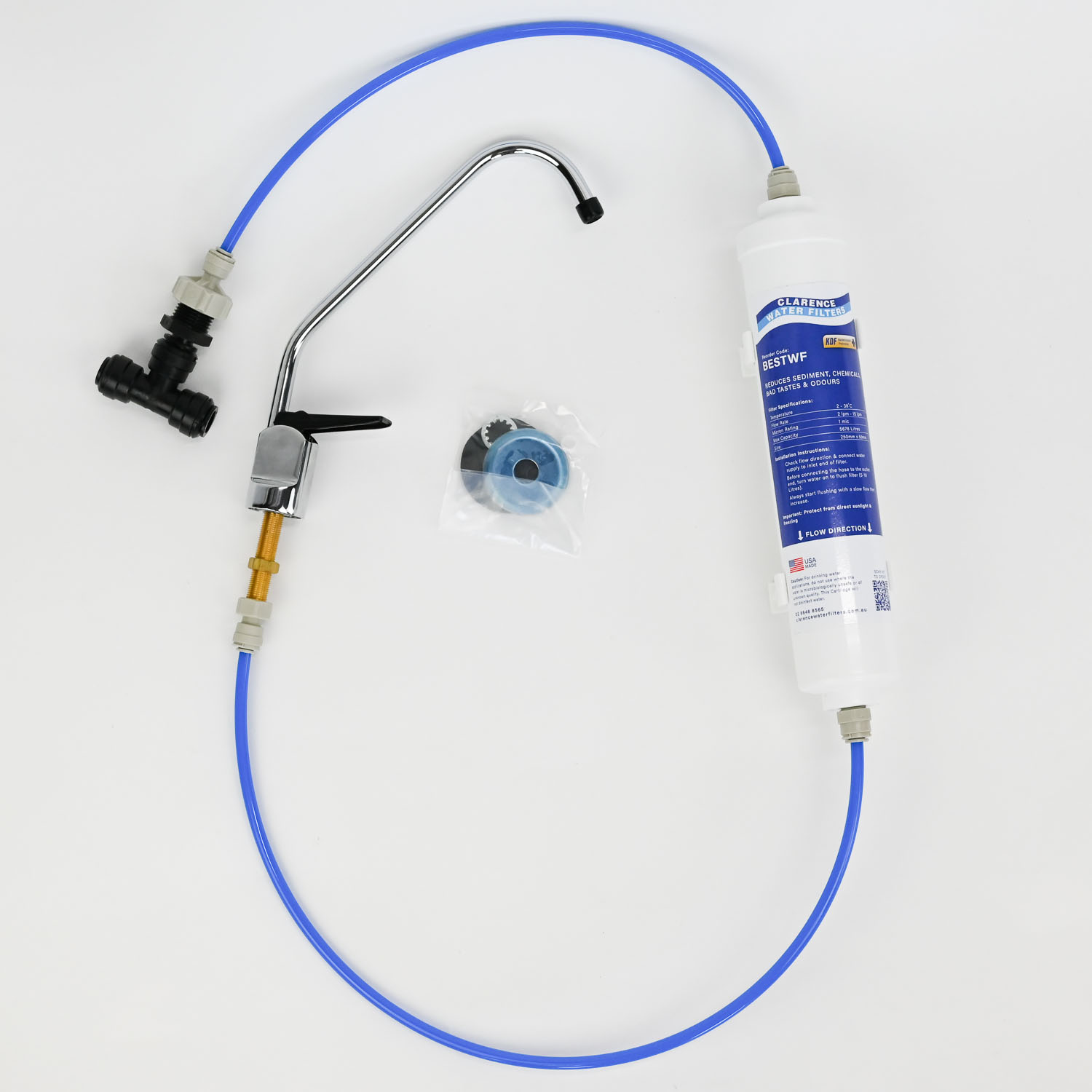

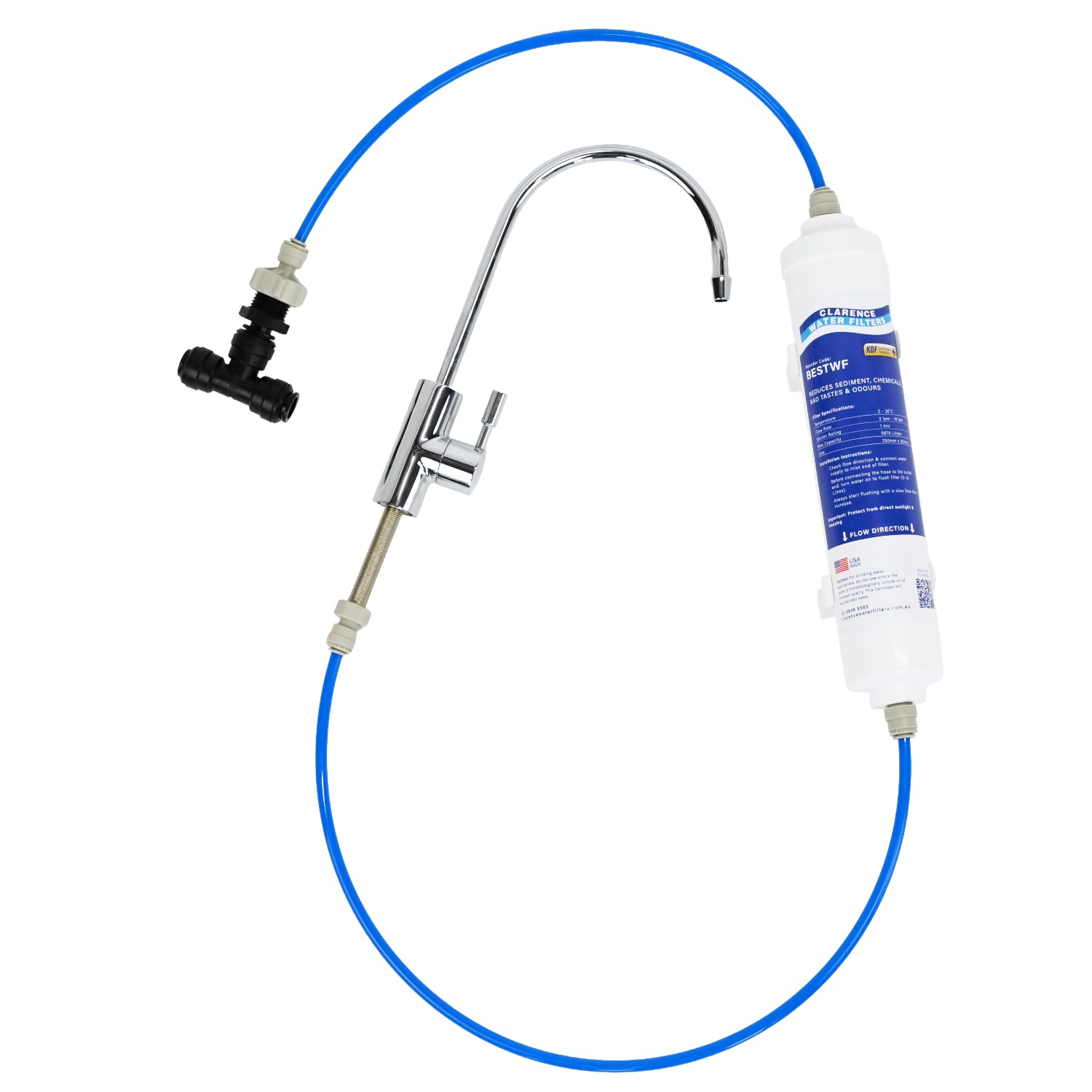

Our Complete Under Sink Caravan and RV Filter System comes with everything you need to filter your incoming water, including:

• Omnipure K2567 BB

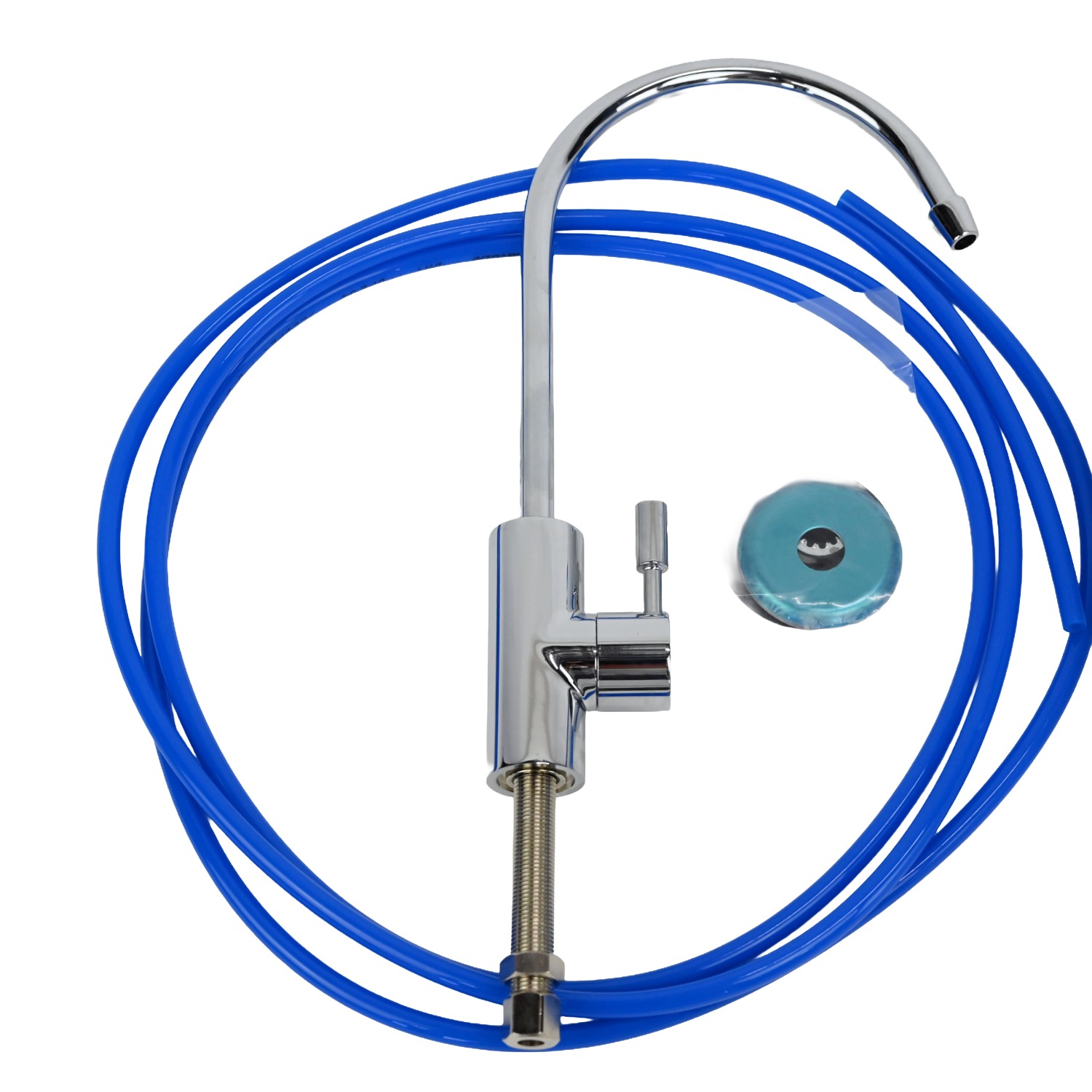

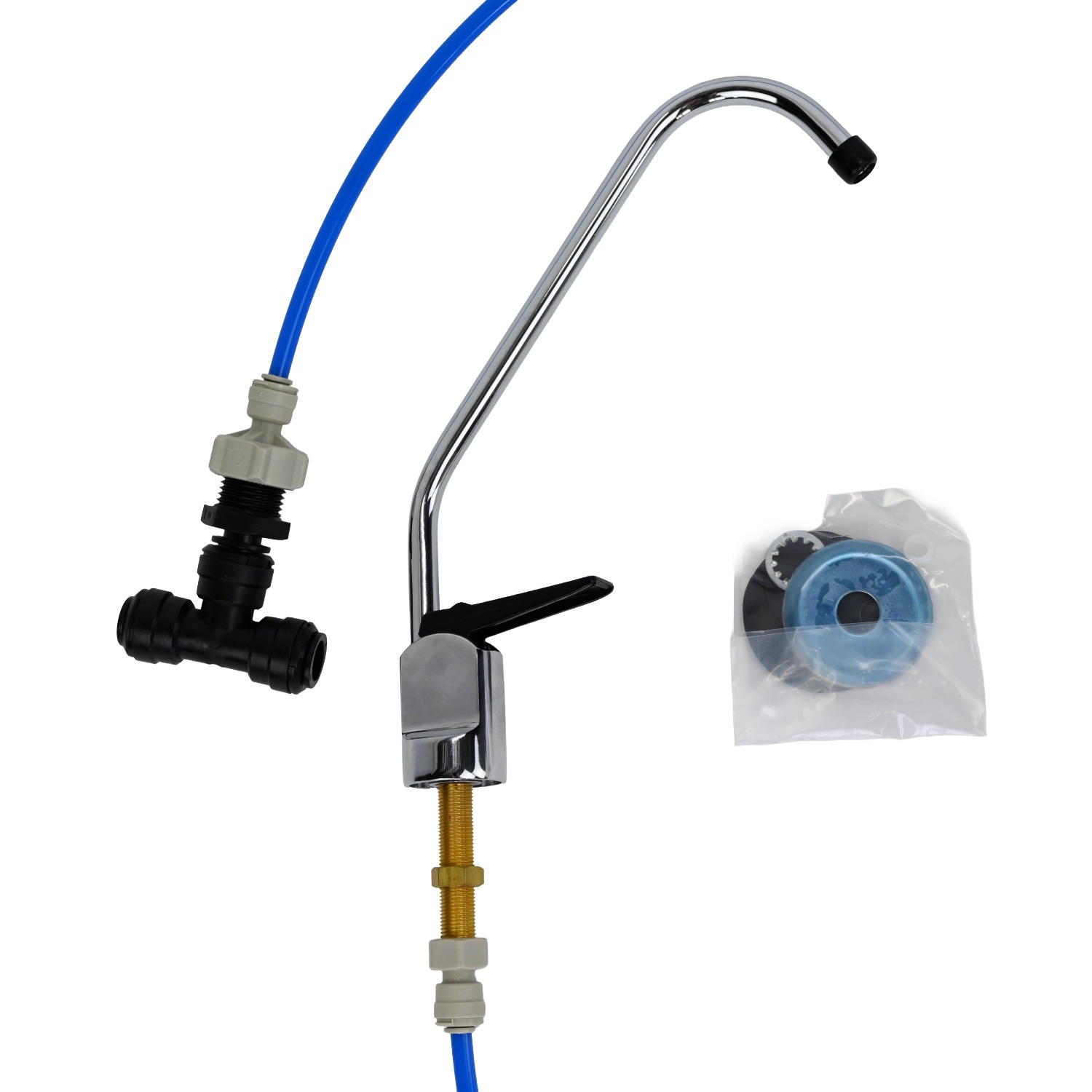

• 1 x 290/BL Black Lever chrome tap OR 301/C Chrome tap

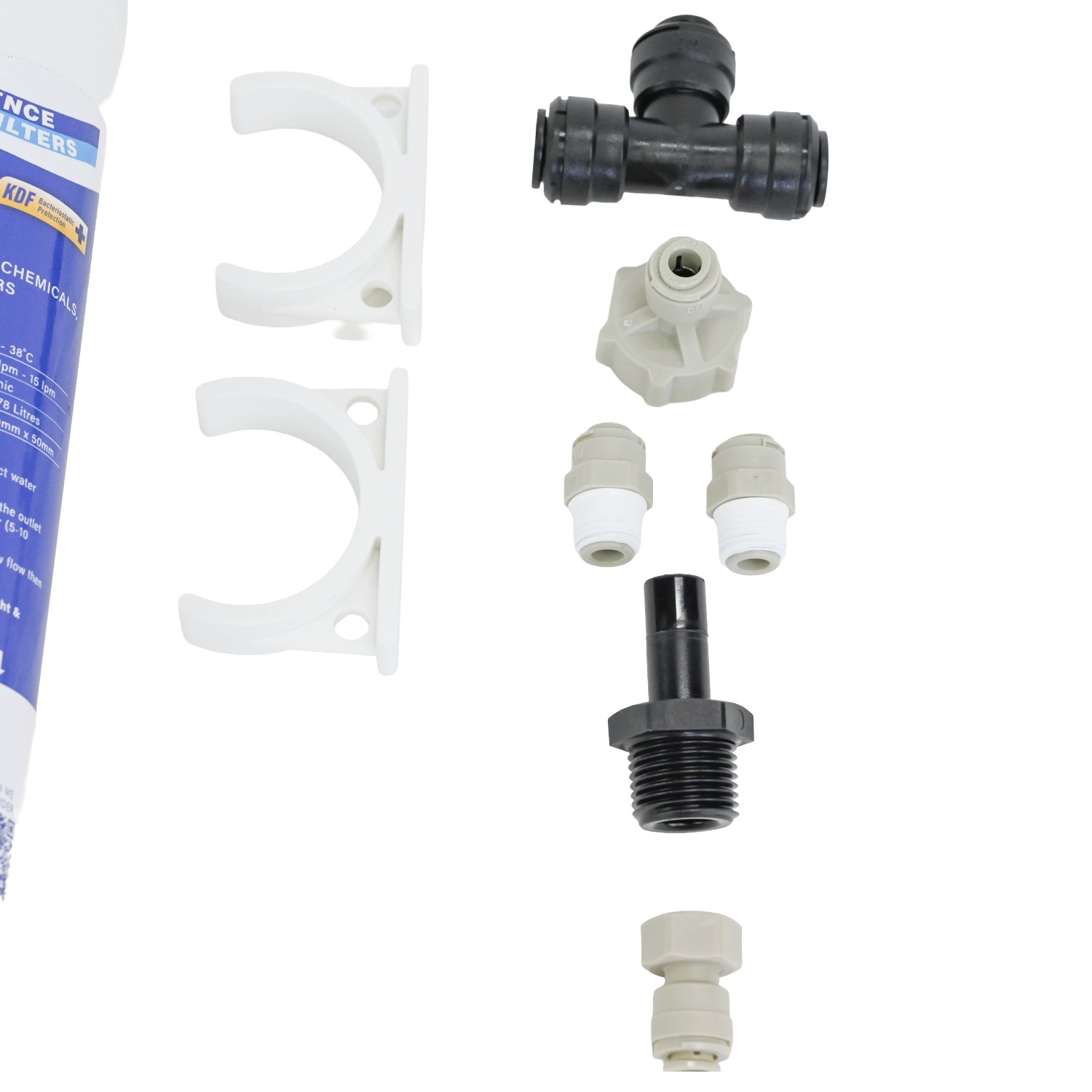

• 2 x 1/4″ Male NPT to 1/4″ Tube Fittings
• 1 x 7/16″ UNS to 1/4″ Connector (Connects your tap to the 1/4″ tubing)
• 2 x Metres of 1/4″ blue tubing (Runs between water filter and tap)
• 1 x 12mm DMFit Tee fitting (Connects with your standard 12mm tubing)
• 1 x 12mm stem to 1/2″ BSP male  (Connects with Tee fitting)
• 1 x 1/2″ BSP female to 1/4″ tube  (Connects with Stem fitting to feed water filter)
• 2 x 50mm Clips
• Instructions

Filter Kit Options

Select between the 301/C Chrome tap and the Black Lever tap. Both options are watermarked, which means they adhere to strict Australian standards.

Operation Tips

Instructions are included with the system to make installation a breeze.

All you will need to do is cut into the 12 mm cold water line which feeds your existing tap, insert the tee piece, then install the filter. Find a great location for your tap then run 1/4″ tubing from the outlet of the filter to the tap.

Delivery Details

All deliveries received before cut off times are shipped out same-day via Australia Post, Aramex or Startrack.

Cut off times are 1pm for Aramex and Startrack deliveries, and 4pm for Australia Post deliveries.

Frequently Asked Questions

How long does each filter last?

The Omnipure K2567 is a high capacity filter which has a chlorine reduction capacity of 6000 Litres (may vary based on water quality). Travellers who fill up on reasonably clean town water will enjoy between 12- to-24 months lifespan from 1 filter. We recommend that you go no longer than 2 years between filter changes as bacteria may develop in the filter cartridge.

Where Are The Filters Made?

All Omnipure water filters are American made. This gives you the certainty that your water filter is made using high-quality components and tested for effectiveness.

Are Omnipure Filters Easy To Find?

Omnipure has been in operation for over 30 years and has become one of the world’s leading suppliers of water filters. You can find Omnipure products in most water filter shops, as well as many caravan repair centres, hardware stores, and plumbing stores.
