Description

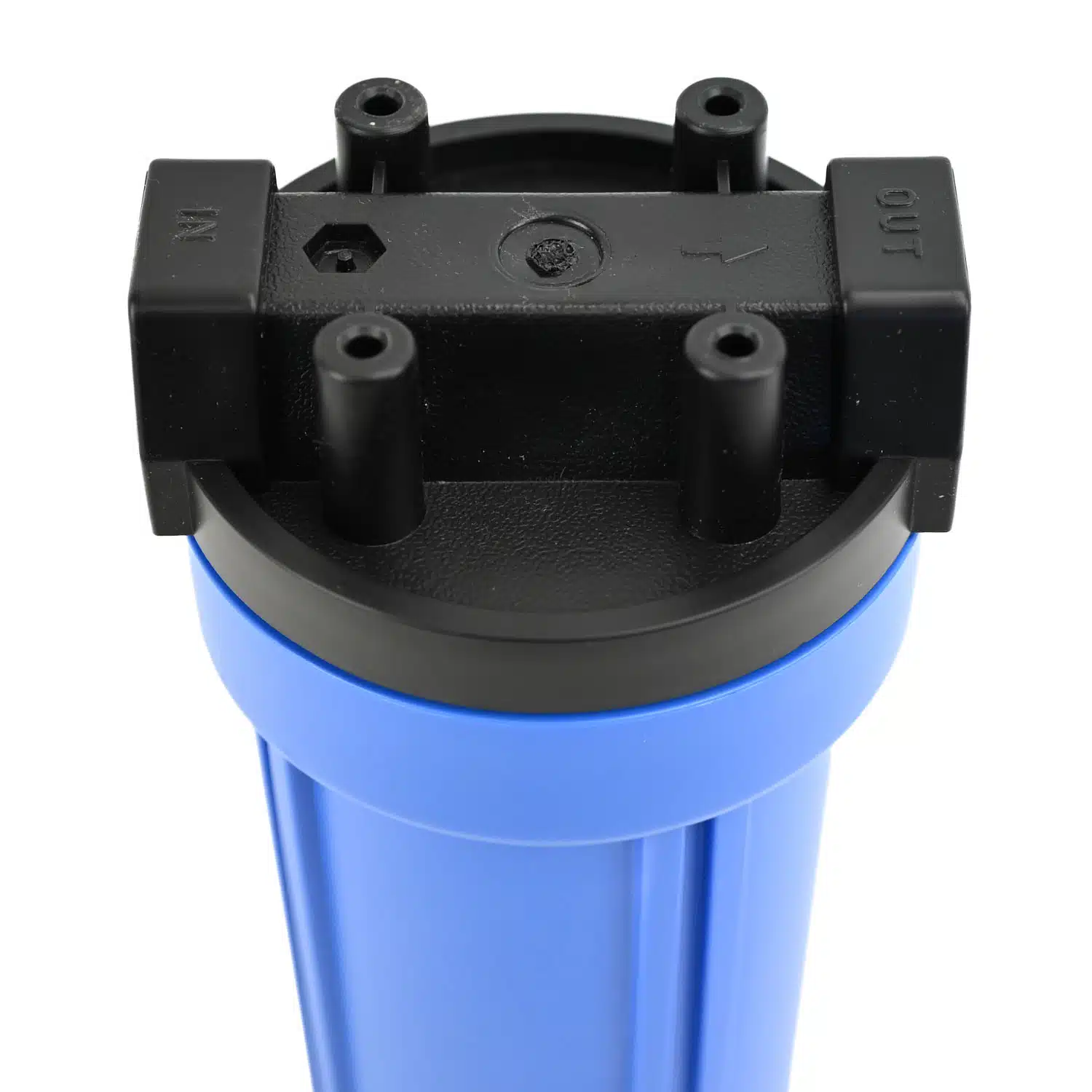

Filtaflo / Aqua-pro Housing 10″ standard 3/4″ Bsp ports. The HD1020 housing will take all 10″ x 2.5″ (9 3/4″) standard water filter cartridges.
HD1020 heavy duty housing ideal for outside applications.
10″ Aqua-Pro Housing – Specifications
- Dimensions: 320mmH x 130mmW

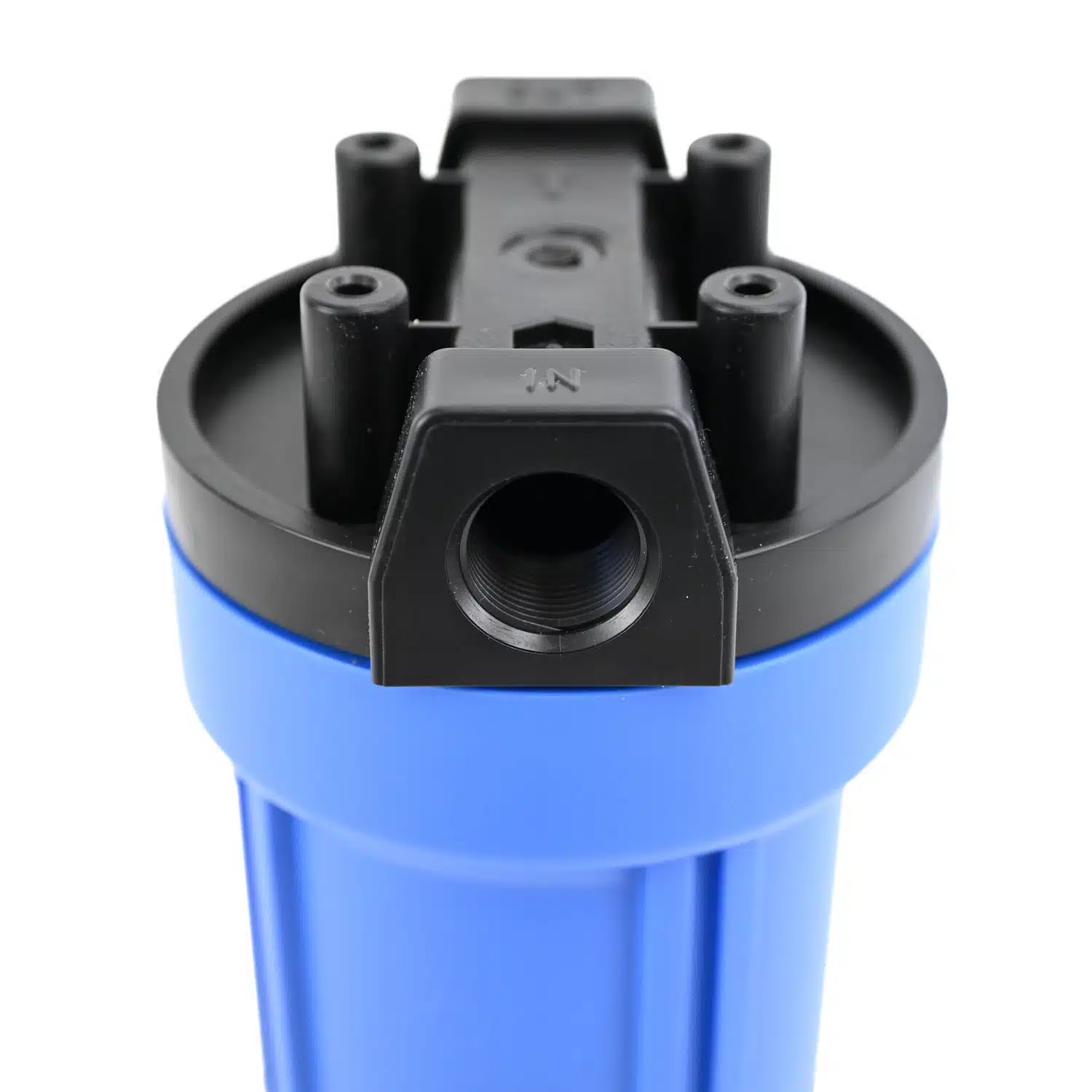

- Ports: 3/4″ Bsp inlet & outlet ports.
- Flow rates: Up to 38 Lpm depending on filter cartridge used.
- Max pressure: 100 psi
- Compatibility: Works with any standard 10″ x 2.5″ DOE filter
- Country of origin: Taiwan
10″ Aqua-Pro Housing – Compatible Parts
- O-ring: Aqua Pro 3/4″ Housing O-Ring 824-A

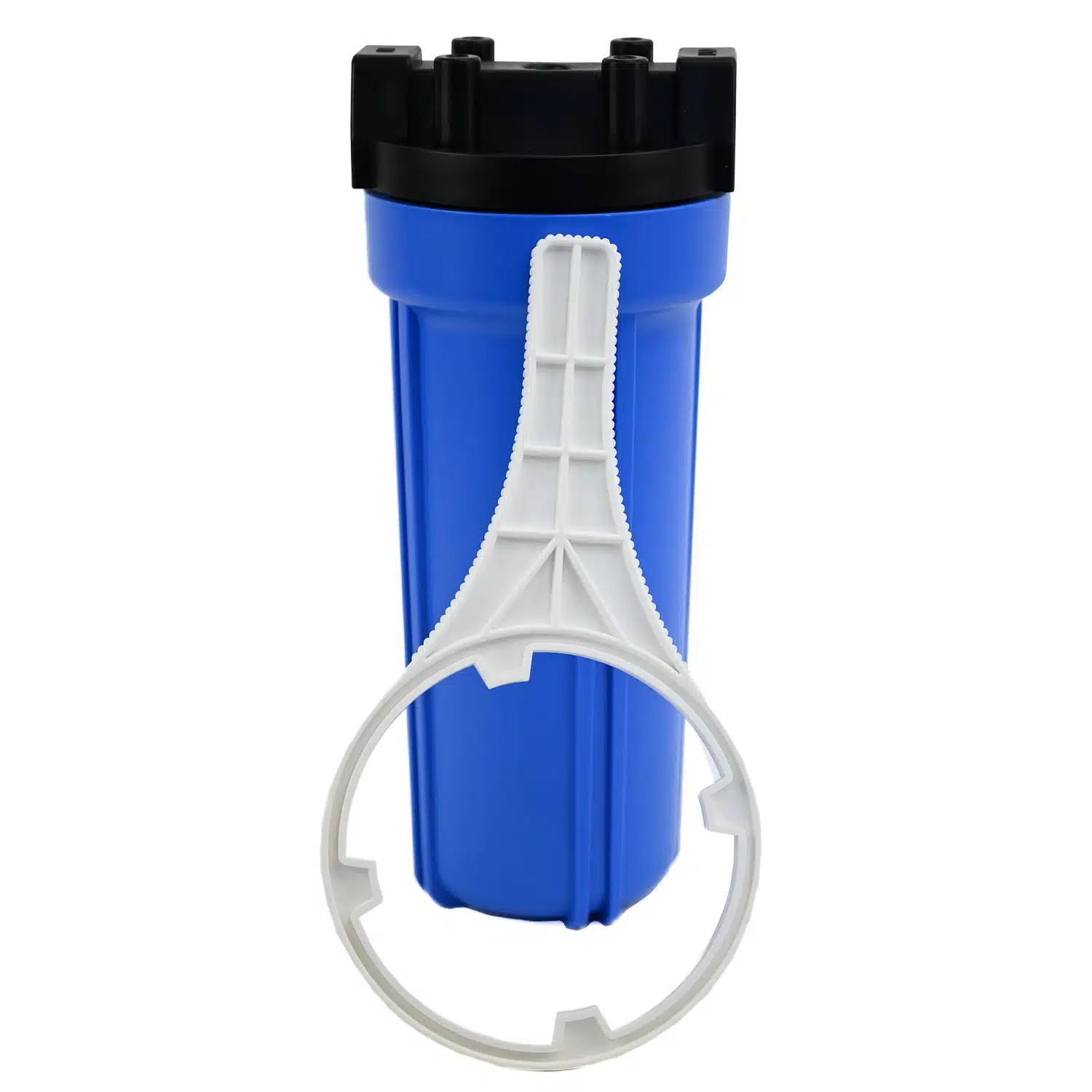

- Spanner: Aqua-pro 3/4″ Port Housing Spanner

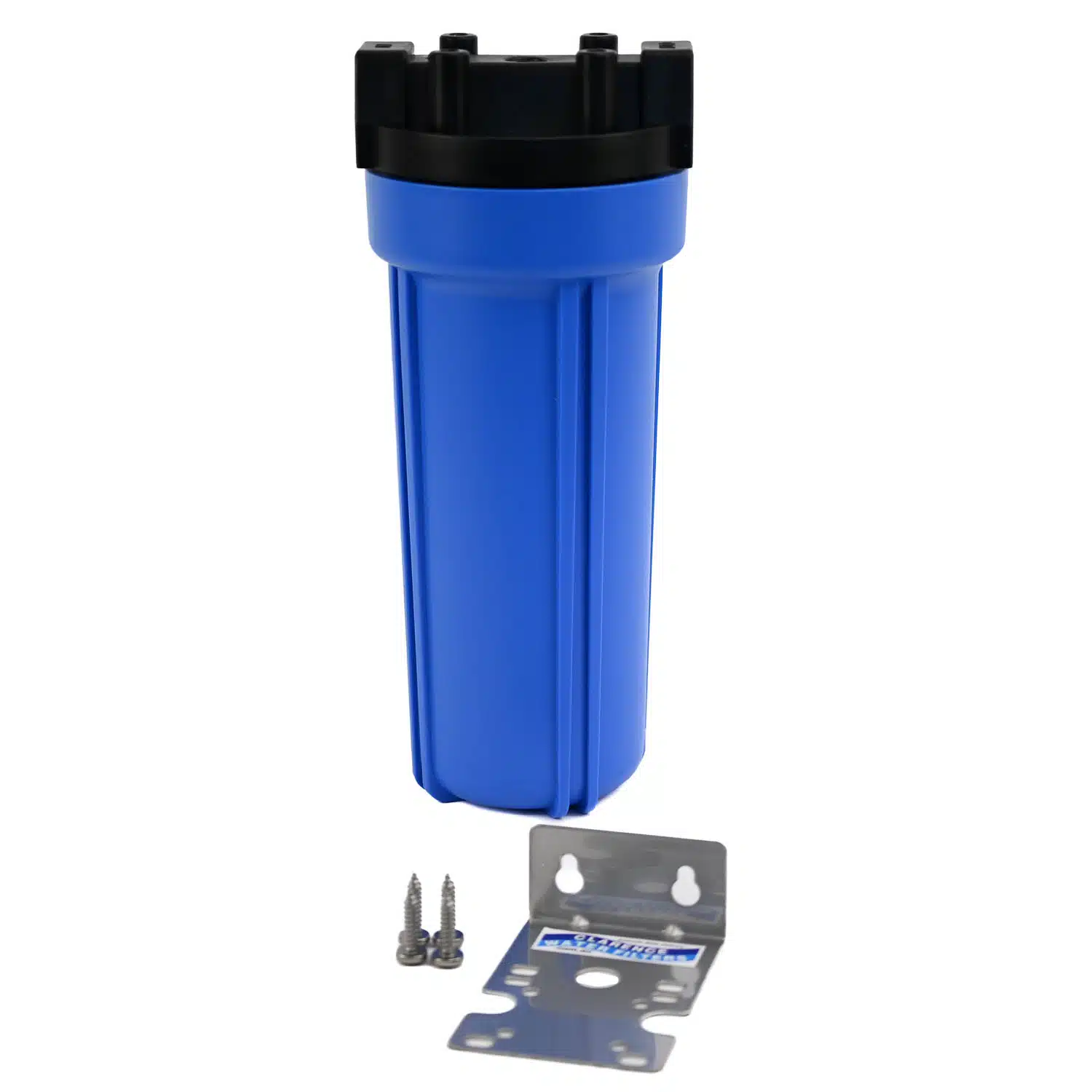

- Bracket: Single 3/4″ Stainless Steel Water Filter Mounting Bracket & Screws 265

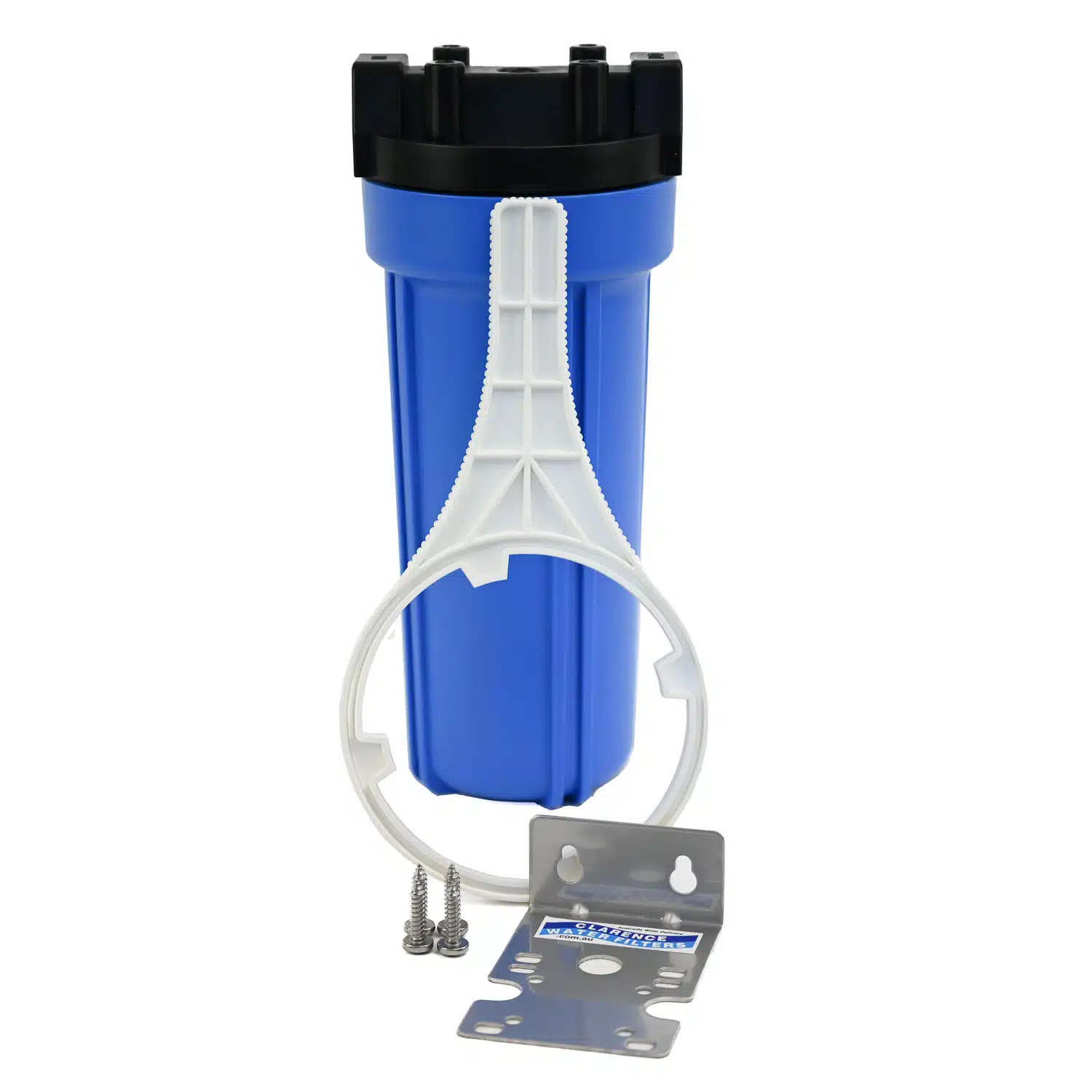

Stainless Steel Mounting Bracket with screws and Housing spanners for unscrewing the filter sump can be added in the product options.
Note: If used on high pressure mains water supply it’s recommended to use a pressure limiting valve before housing.
