ame0402

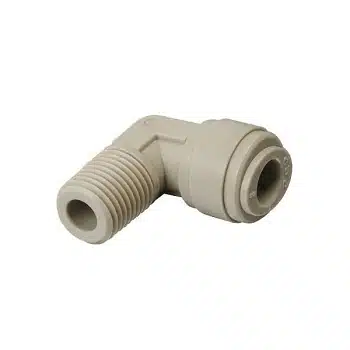

1/4″ Tube to 1/8″ Male NPT Elbow CI480821W AME0402

$4.05

SKU: 1/4"Tube - 1/8" NPT Elbow CI480821W AME0402 Categories: , ,

Description

1/4″ OD tube to 1/8″ NPT elbow fitting.

1/8″ NPT = 10.3mm

Suits 1/4″ high pressure tubing.

CI480821W, AME0402

Thread Type and Size Chart

BSP size (British Standard Pipe)

                        Actual Diameter Imperial        Actual Diameter Metric

1/8” BSP               0.35 inch                                     9 mm

1/4” BSP               1/2 inch                                      12 mm

3/8” BSP               6/10 inch                                    15 mm

1/2” BSP               3/4 inch                                      19 mm

3/4″ BSP               1 inch                                          25 mm

1”  BSP                  1 & 1/4 inch                               31 mm

1 & 1/4″ BSP        1 & 2/3 inch                                40 mm

1 & 1/2″ BSP        1 & 3/4 inch                                45 mm

2”  BSP                  2 & 1/4  inch                             57 mm

UNS size (Unified National Special)

                        Actual Diameter Imperial        Actual Diameter Metric

7/16” UNS             0.4375”                                     11 mm
