Twin High Flow Scale-Reducing Food Service Water Filter Kit

Description

High flow system designed to improve water quality and reduce scale build-up. Ideal for coffee machines, ice machines, drink dispensers, and other water consuming appliances.

QMP34TUS-PS5-Phos/GAC-Kit American made housing system with Mega Flow S/S braided flex hoses & fittings for easy connection.

Ideal if you want filtered water using your existing kitchen tap or mixer. Also excellent for commercial kitchens, soft drink dispensers and ice makers in bars at clubs and pubs.

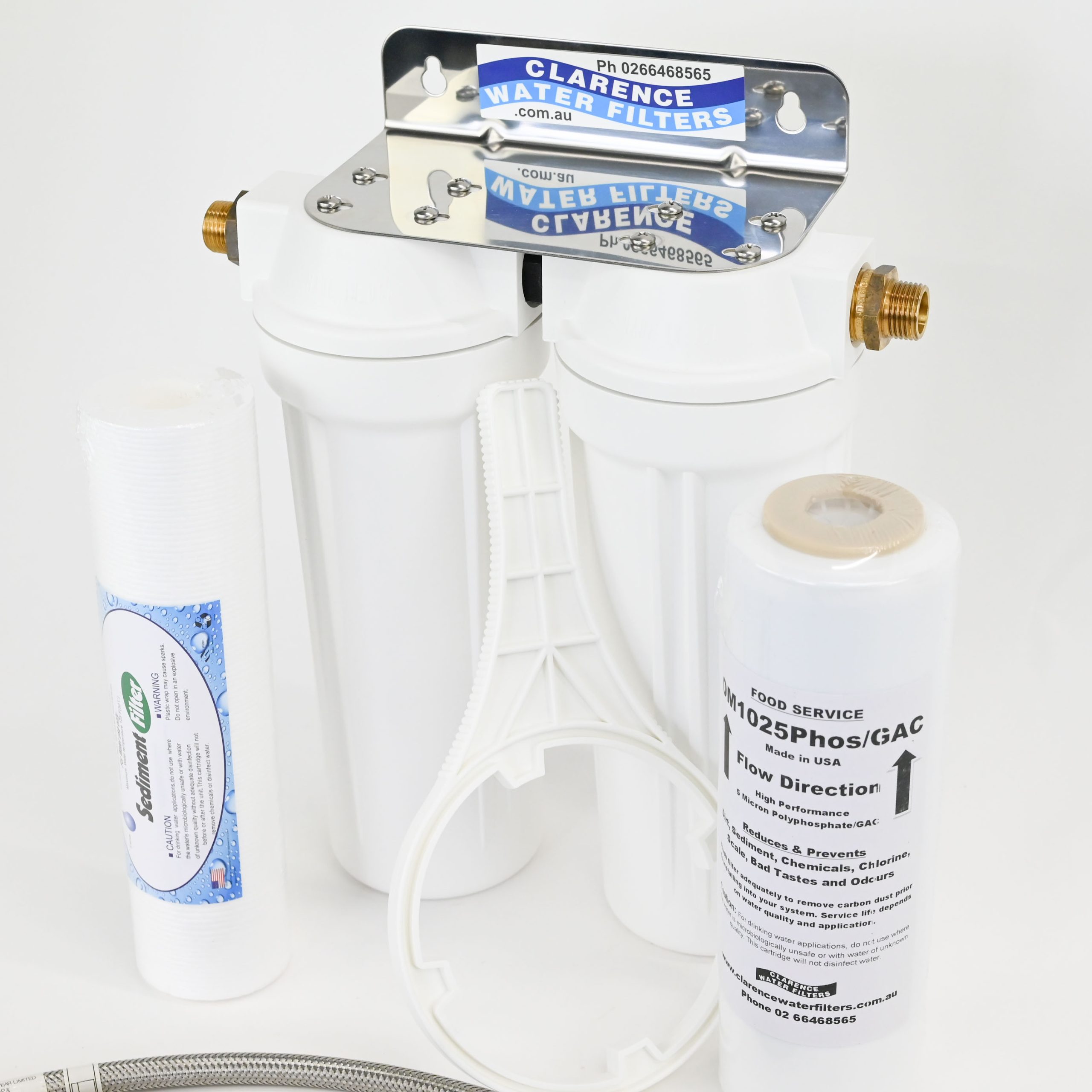

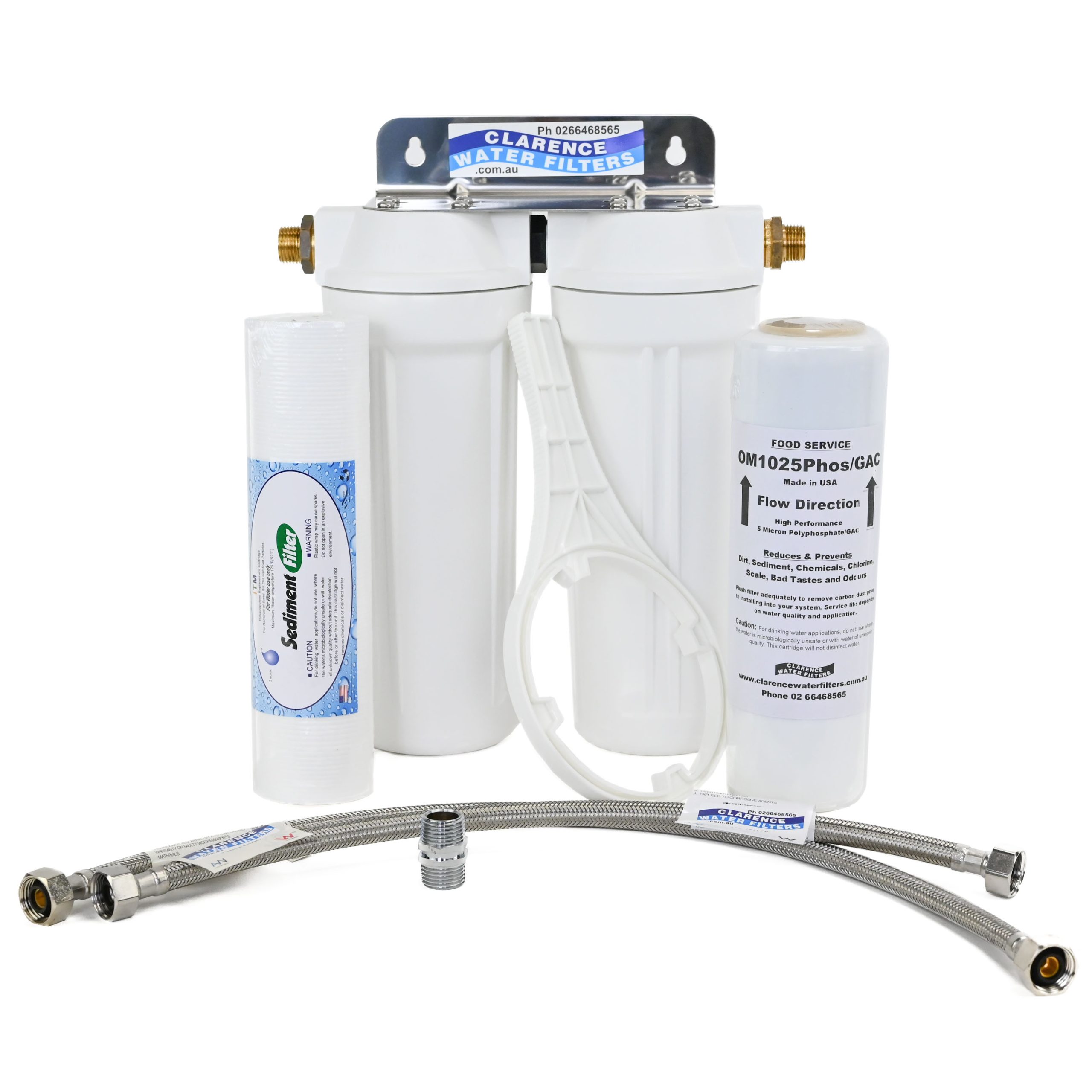

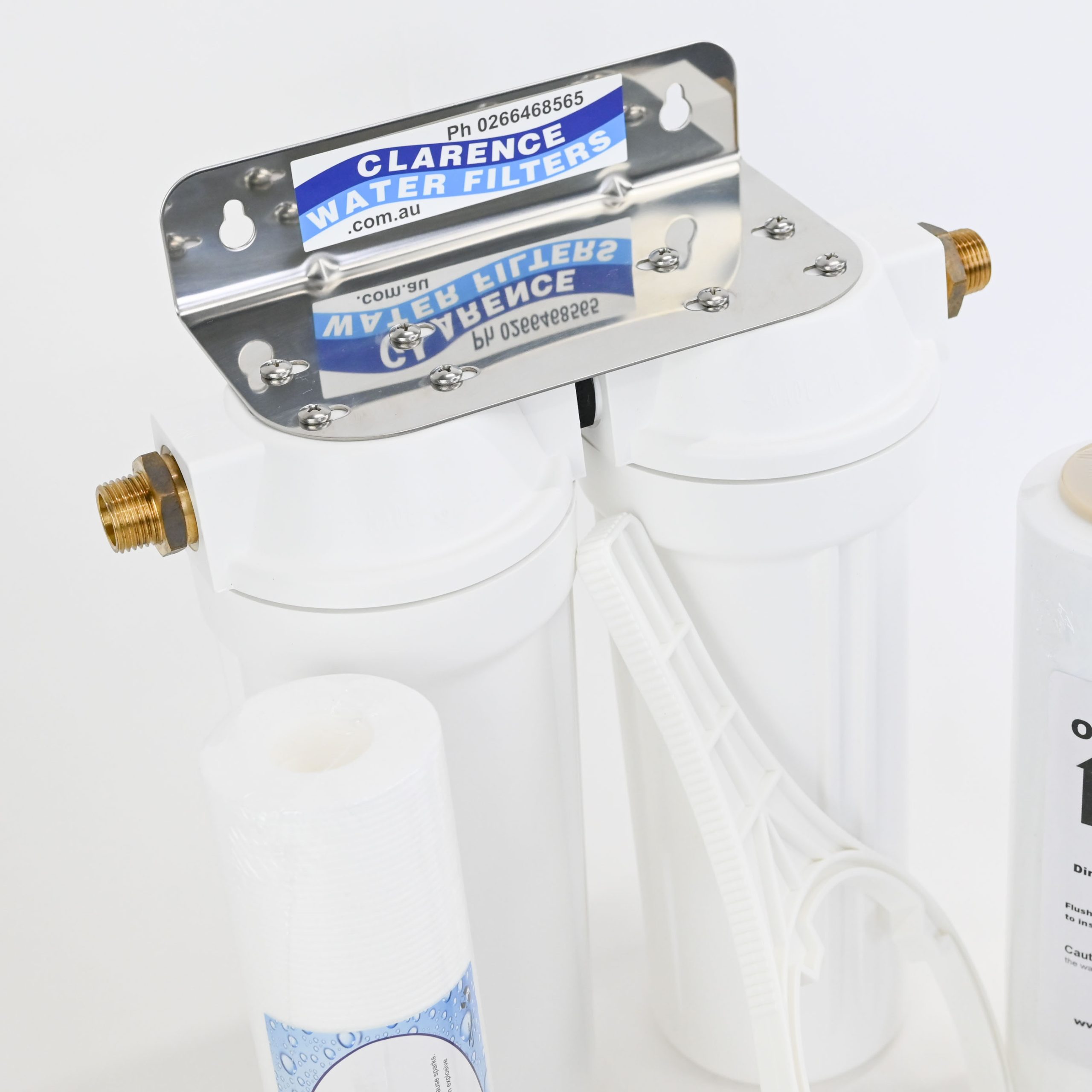

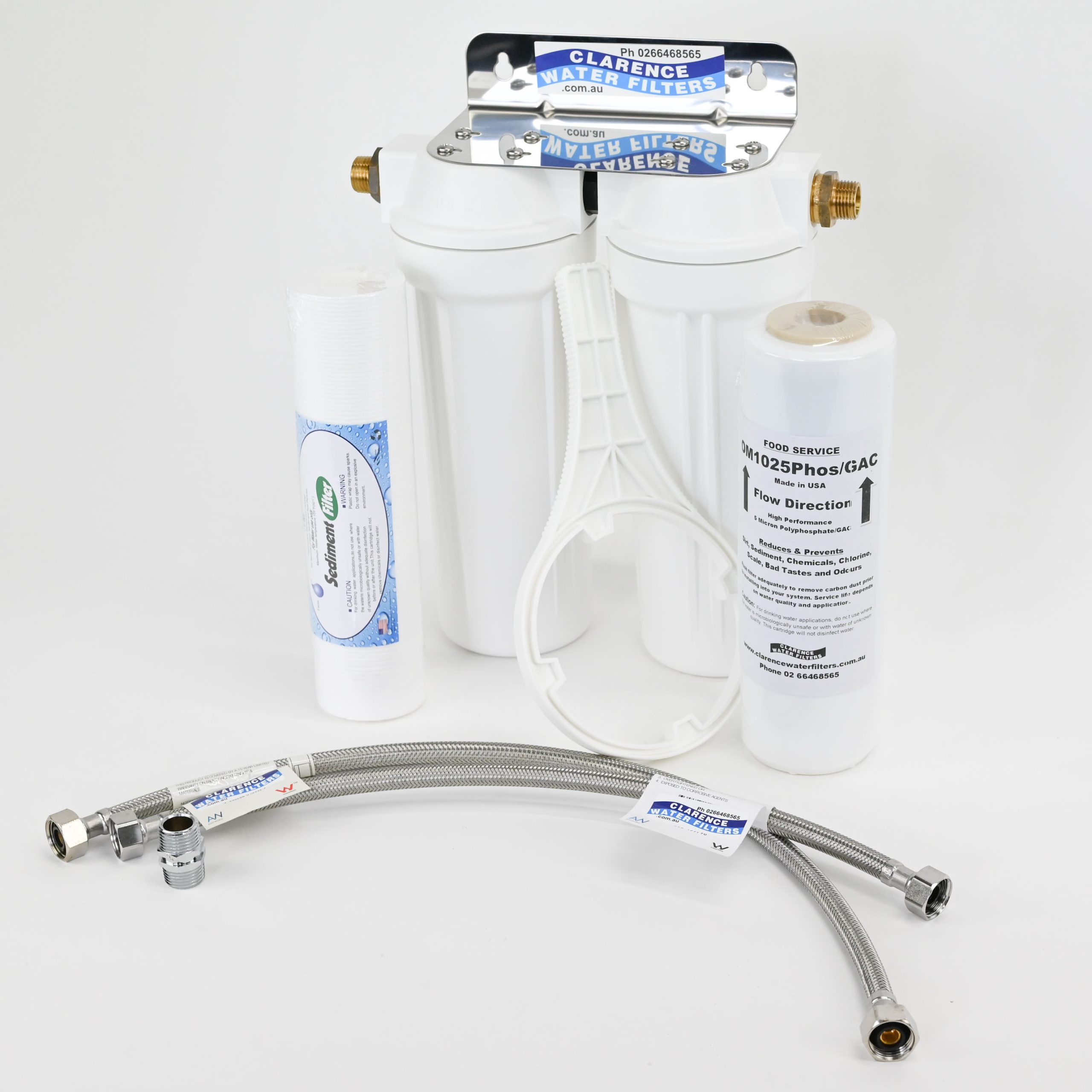

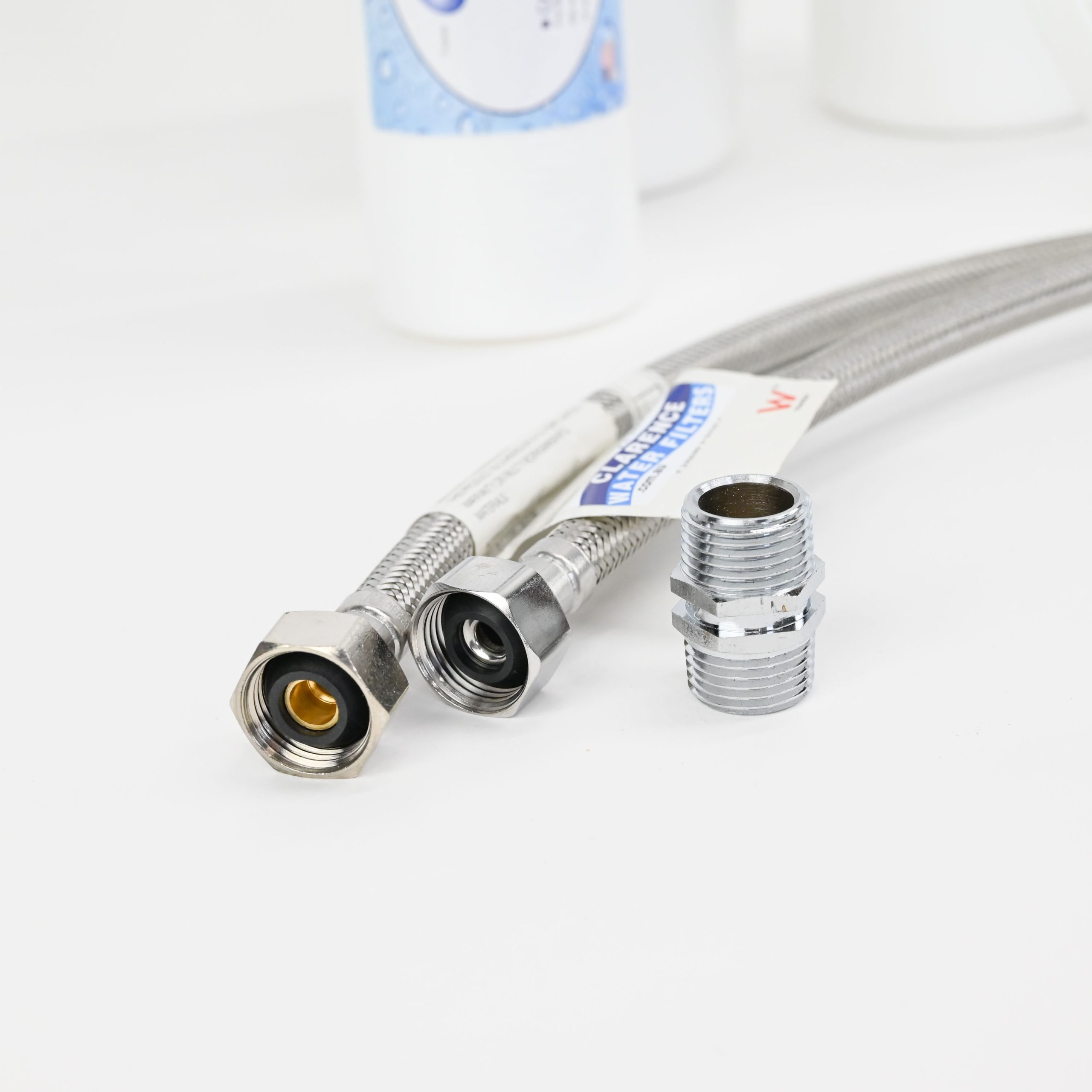

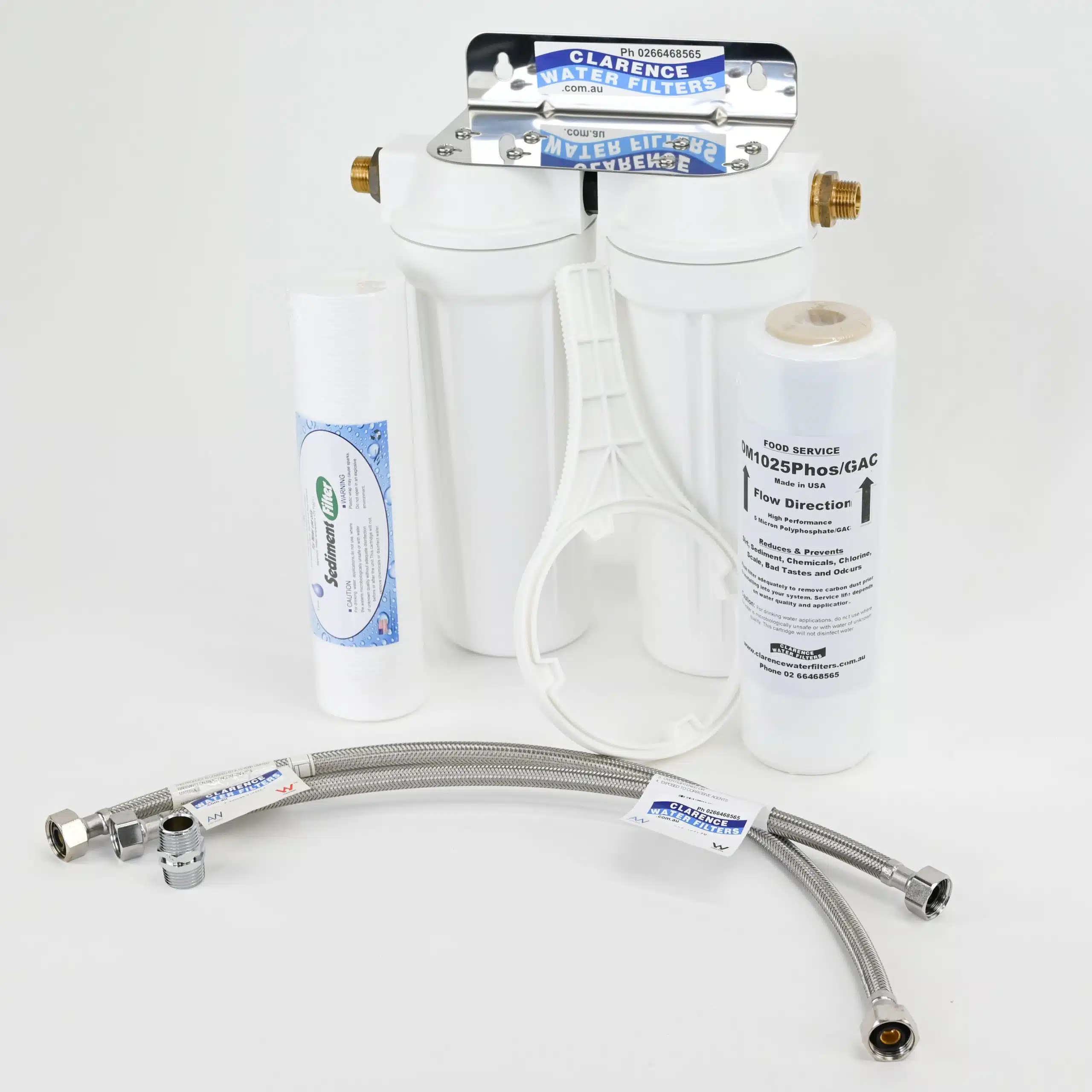

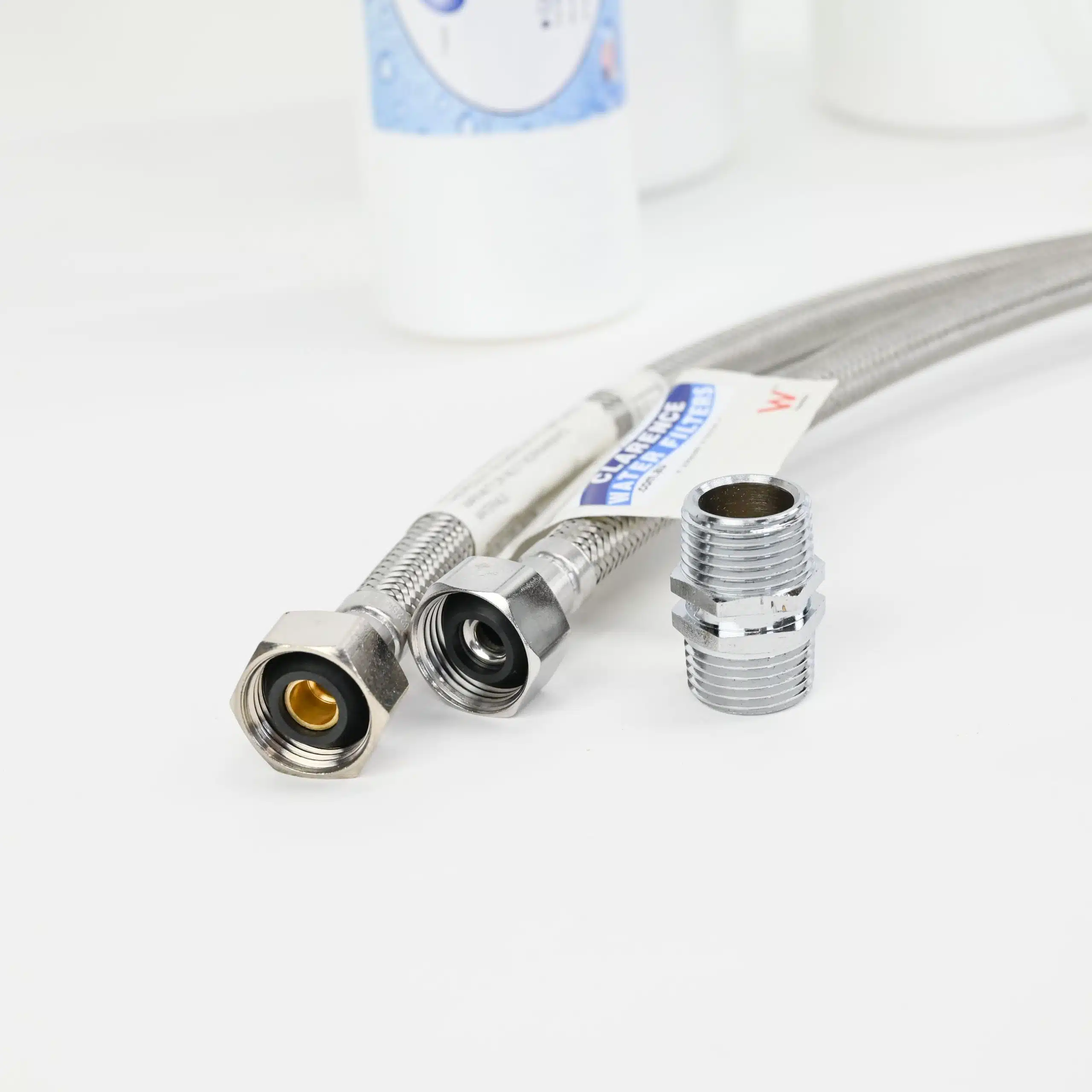

Twin American-made QMP 3/4″ bsp port housings on a white mounting bracket, brass 3/4″ to 1/2″ nipples to allow easy connection to the Mega Flow S/S flex hoses. 1 x 600mm and 1 x 900mm long Mega Flow lines supplied, a 1/2″ bsp nipple is also supplied for connecting to existing hose or mixer. Housing sump spanner included for easy filter replacement.

Filtration Process

Stage 1: 10″ x 2.5″ Sediment Filter

First Stage is a 1025PS5 poly spun 5 micron sediment filter to reduce sediment, dirt, rust, algae etc.. and prolong the life and flow of the second filter.

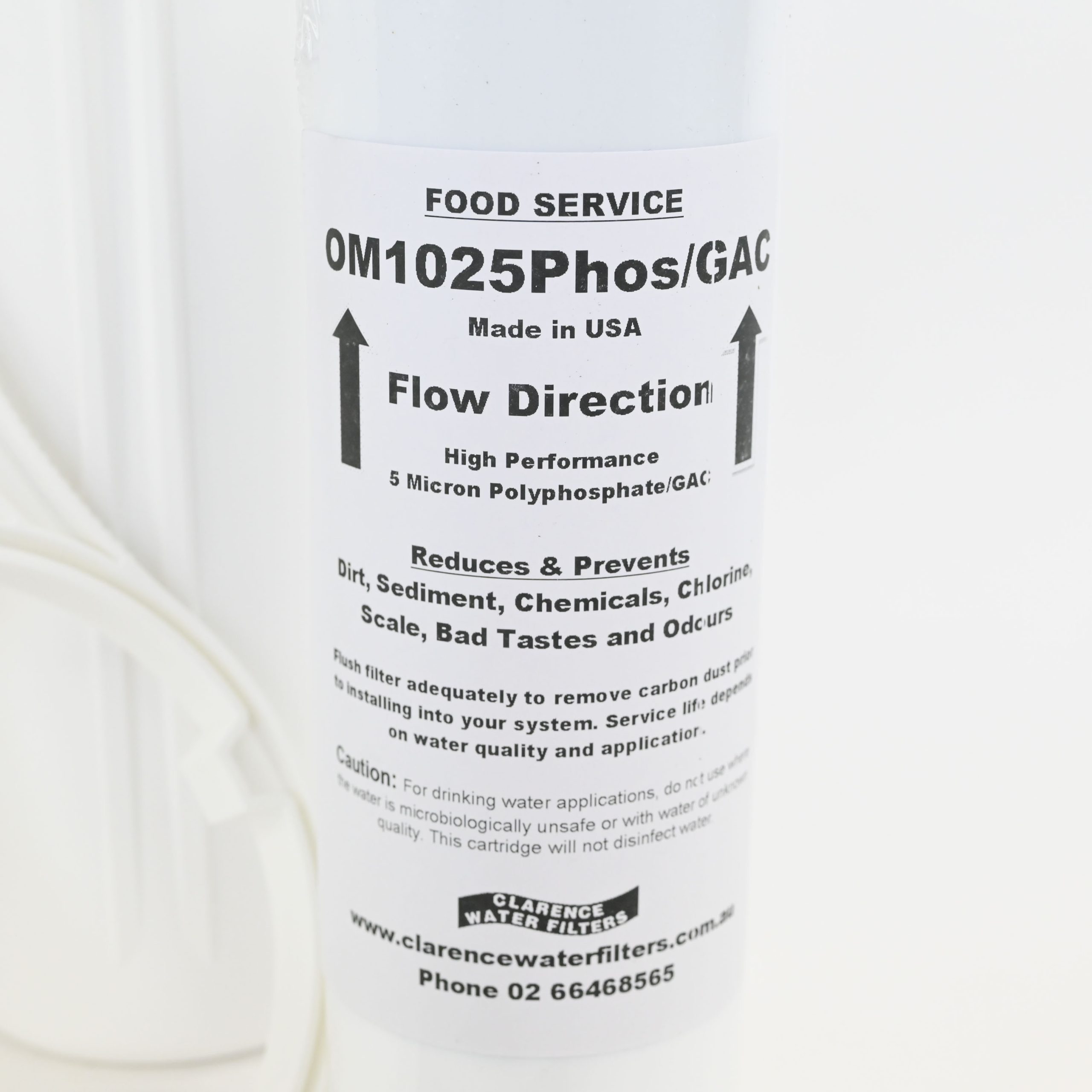

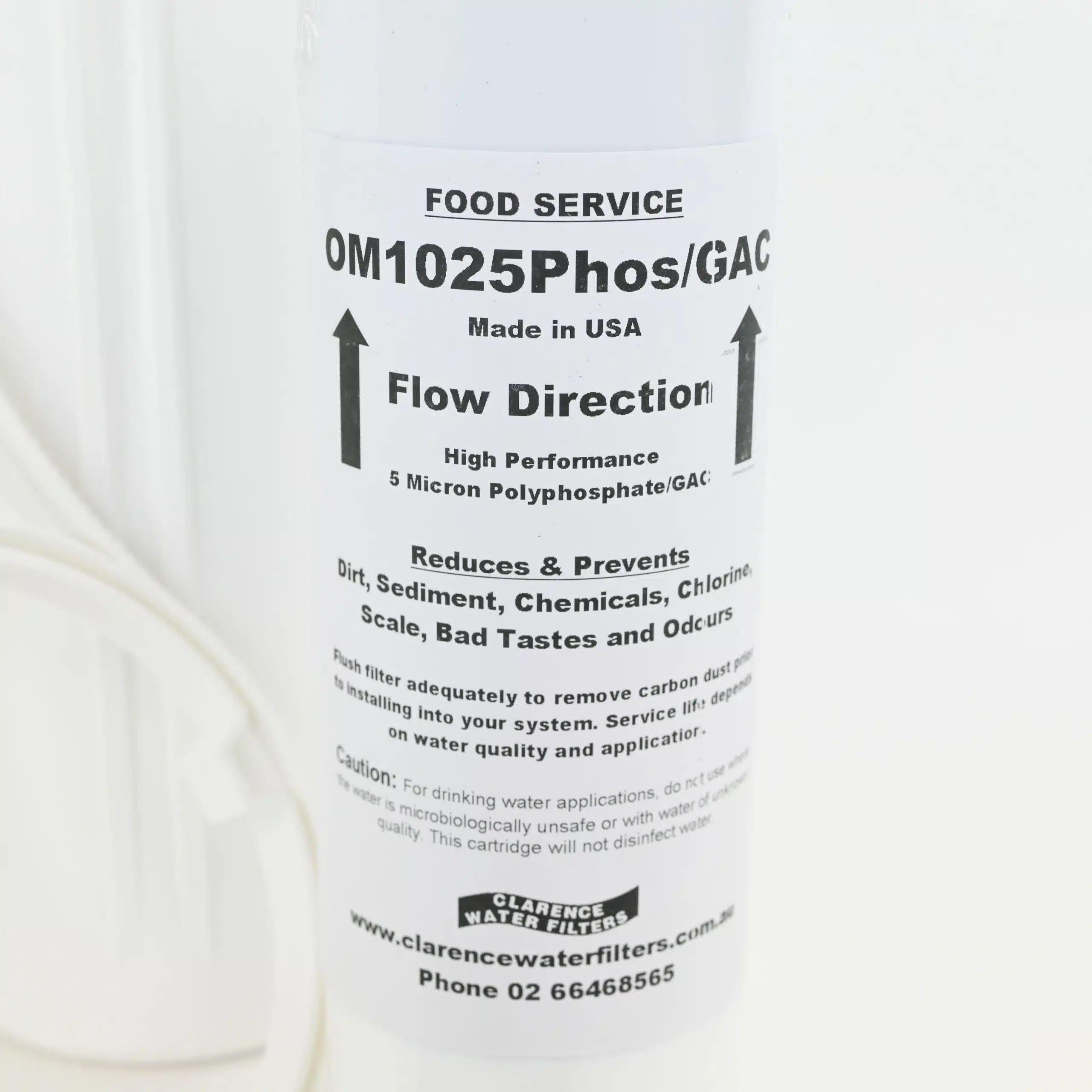

Stage 2: 10″ x 2.5″ Polyphosphate and Granular Activated Carbon Filter (OM1025PHOS/GAC)

Second stage is a OM1025PHOS/GAC for food service and scale reduction. 5 micron high flow scale inhibitor filter.

Does a wonderful job of improving the taste/odour of treated water, reduces chemicals, and substantially reduces scale build-up on appliances.

Made in the USA

Simply contact us if you require other fittings or longer hoses to suit your situation.

Installation Instructions

1. The filters are inside the filter housings.
   Place an old towel on the base of the cupboard to wipe up any water.
2. Identify the cold water line leading to your sink.
3. Turn off the cold water supply, release the water pressure in the line by turning on the cold
   tap, undo the existing cold water hose from the wall or tap under the sink and fit to the
   hose from the inlet side of the new system into cold water supply.
4. Reconnect the existing braided line from the sink tap to the hose on the outlet side of the
   filter system using the brass joining nipple supplied. Most braided lines have a rubber
   olive seal inside the female ends and do not require thread tape – apply thread tape to
   joins if no rubber olive
5. Turn on the cold water sink tap and leave on.
6. Turn on the water supply tap and flush the new filters for 3 – 4 minutes, turn off and on the
   sink tap to let air or fines out of the system.
7. Turn off the sink tap and check for leaks.

As the filters are so fine you may have some air bubbles in the water for a few days, this
will go away.

Filter Changing Tips

• When changing filters is to turn off the water supply tap and turn on the sink
  tap to release the water pressure.
• When turning the water back on make sure the tap on the sink is open otherwise air will get trapped in the filters for a few days, this doesn’t affect the water quality but the water may appear cloudy from air bubbles.
• Always lubricate the housing O-rings with a silicon based lubricant – or use some
  vegetable or cooking oil – do not use petroleum based lubricants that may affect rubber O-rings.
• Tighten the housing sumps by hand only – the spanner is used to undo the housing sumps
  as they can get tight after use.

STAGE I 1025PS5 Poly Spun Sediment filter – 5 micron
STAGE II 1025Phos/GAC GAC filter with phosphate
