Description

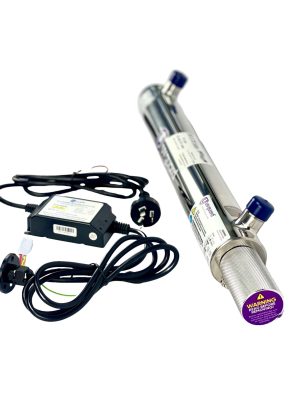

SLT30 30 watt 240v Ultra Violet Light Disinfection Purifier with ballast controller.
No micro organisms are known to be immune to Ultra Violet light — it’s effective against bacteria, mould, fungal spores, viruses & yeasts.
This UV disinfection system represents an economical yet effective solution to water disinfecting without the use of chemicals and has a high flow rate.
There is a very real risk of contamination in drinking water from bores, tanks & rivers throughout Australia with even some town supplies carry bacteria & Cysts, Giardia & Cryptosporidium.
This system has a high treatment flow rate which makes it suitable for a small whole of house sterilization.
It is recommended to have a 5 micron sediment filter before any UV system so the lamp’s protective sleeve does not get covered with sediment build up also by reducing the sediment all bacteria comes in contact with the Ultra Violet light.
Water enters from one end and is spiralled around the Stainless Steel vessel for maximum contact time before leaving the outlet port. Depending on your water supply this unit may only need one easy service a year where you remove the lamp protective sleeve and wipe clean for best light output.
Lamps are recommended to be replaced every 12 months to keep the system working at peak bacteria killing performance.
The lamp is connected to a ballast which has warning buzzer and indicator lights showing that the system is working correctly. Choose between the standard 40044 ballast and the 40050 ballast with the LED count down timer display and this ballast has connections to allow remote monitoring.
The UV vessel is made from 316 Stainless Steel rated at 120psi and has two mounting clips.
These systems are usually mounted vertically but can be mounted horizontally as well.
UV Guard SLT 30 Replacement Specifications
- The UV vessel has 3/4″ bsp inlet & outlet ports.
- Dimensions 600mm x 100mm
- 316 stainless steel
- Max Pressure rating: 120psi
- For Non-potable water use a 30 mJ/cm² flow rate of 22 Lpm can be achieved.
- Maximum killing capacity with a 40 mJ/cm² flow rate of 17 Lpm which meets the Minimum Australia Standards for UV dosage for potable drinking water.
- 240v ballast cord and plug 30 watt 4 pin lamp.
- 2 Year warranty on S/S chamber and 1 year on ballast, subject to usage.
Not suitable for saltwater applications.
UV Guard SLT 30 Replacement Parts
- Replacement UV Lamp: 11030 30w 4P F
- Replacement ballast 40044 Standard Ballast or 40050 with day count down LED display and remote monitoring terminals.
- Replacement Quartz Thimble Part No: 20295
- Replacement o-ring seal Part No: 31001
