Tank or Rural Large Twin Whole of House Water Filter System Disposable Cartridges

Description

Large Twin Whole of House Silver Impregnated Water Filter System For Tank or Rural Water Supplies

Can be used on Chlorinated or Untreated water supplies.

Ideal for tank water or town water to reduce the risk of Bacterial growth within the filter. Large flow rate filter ideal for wholehouse filtration no matter what your water supply, Tank, Dam, Creek, River or Bore.

These filters can be used for most situations where water quality needs to be improved.

For extra protection against bacteria it’s recommended to install a UV sterilizing system after the whole house system or install a drinking water filter at the sink with a cysts rated filter cartridge.

Twin Whole House Filter System Components

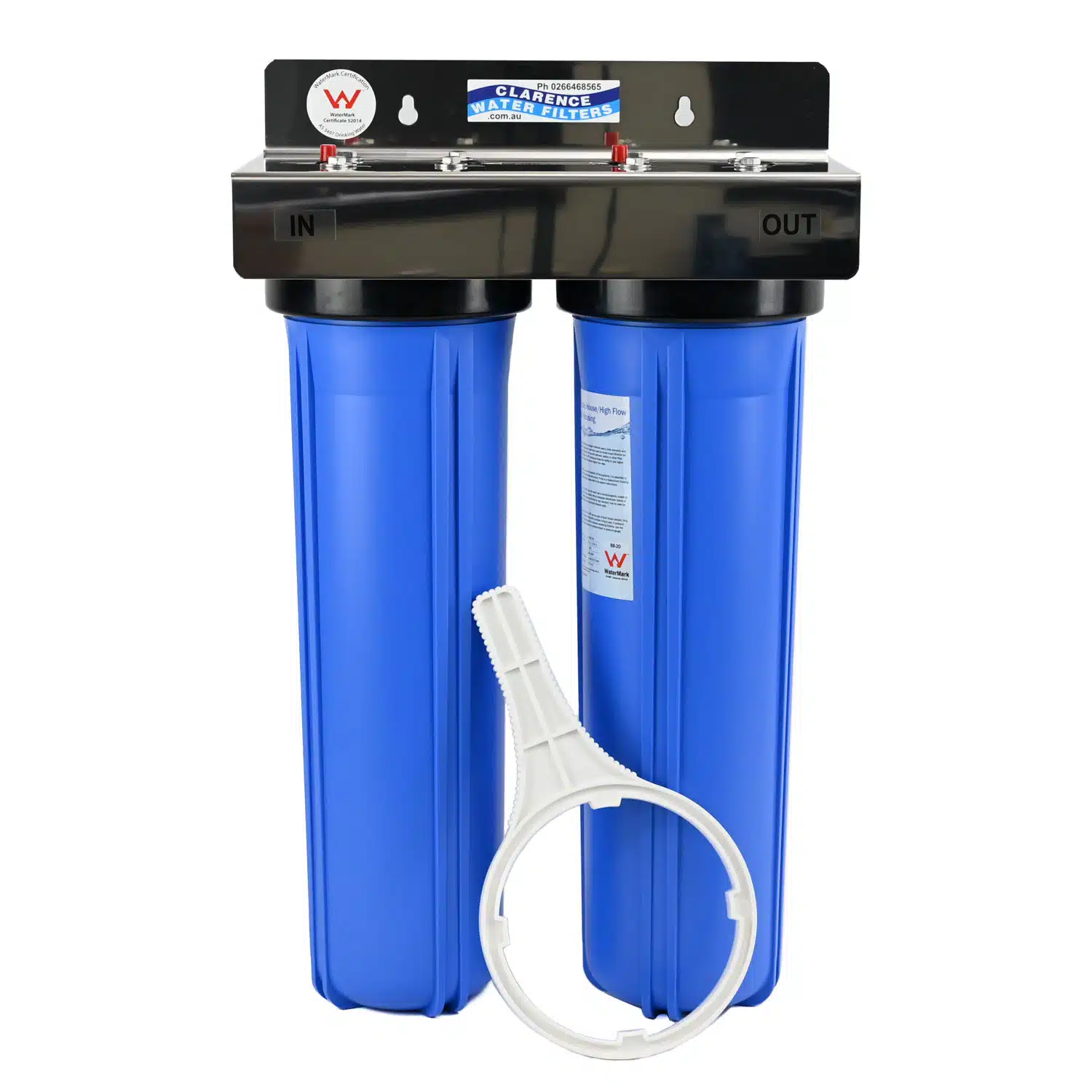

WaterMarked approved Twin Big Blue filter housings with 1″ Bsp threaded inlet & outlet ports that take standard 20″ x 4.5″ filters, mounted on a Stainless Steel bracket with a plastic housing spanner for undoing the filter sumps.

Stage 1: 20″ x 4.5″ Poly-Spun Sediment Filter (5 or 20 Micron)

The first stage of the system is a 2045PS polyspun  sediment filter which will reduce sediment, rust algae etc. You can choose between a 5 Micron filter for light fine sediment or a 20 micron filter for heavy sediment water supplies, as a guide most suspended sediment is removed at 20 microns. The thicker side wall of the polyspun sediment filters give them a greater sediment holding capacity.

Please choose the sediment filter micron rating in the drop down boxes in the Filter Options.

Stage 2: 20″ x 4.5″ Silver Impregnated Activated Coconut Carbon Block

The Silver carbon will reduce Bacteria growth in the filter. Will also reduce Chemicals, Chlorine, Organic Compounds, Trihalomethanes, Fallout from over spray, Bad Taste and Odours greatly improving your water quality.

Second stage is a 2045CB5silver 5 Micron silver impregnated coconut carbon block filter with sediment external sediment wrap.

For a small investment you will be surprised at the difference these filters will make to your water quality.

Filter life will depend on water quality and volume used. As a guide filters should be replaced 6-12 months being the maximum

If you need help or not sure which option is best for you just contact us for advise.

Specifications – Twin Whole Of House For Tank Or Rural Water Supplies

• Dimensions: 385mm wide x 200mm deep x 700mm high (you will need to allow an extra 50mm under the system for changing the filters)
• Replacement Housing O-Rings: 826/A
• AS/NZS 3497:1998 Amdt 1 2001 Drinking Water Treatment Units Plumbing Requirements
• Watermark Certificate 052014 for Model ID #IT002530

Temperature range 0.5°C – 37.8°C

Limit pressure to a maximum of 500kPa

If you suspect that your water pressure may exceed 80 PSI at any time a 500 kPa (70 PSI) pressure limiting valve must be installed.

3/4″ BSP female 500 kPa pressure limiting vales are available in the options.

AS/NZS 3497:1998 Amdt 1 2001 Drinking Water Treatment Units Plumbing Requirements.

If your system has plastic ports do not use pipe dope or other liquid thread sealers. Use only Teflon tape to seal threaded connections.

Replacement filter and carbon kits available bellow.

First Stage:
2045PS5 (Light Sediment)
2045PS20(Heavy Sediment)

Second Stage:
2045CB5silver
