Description

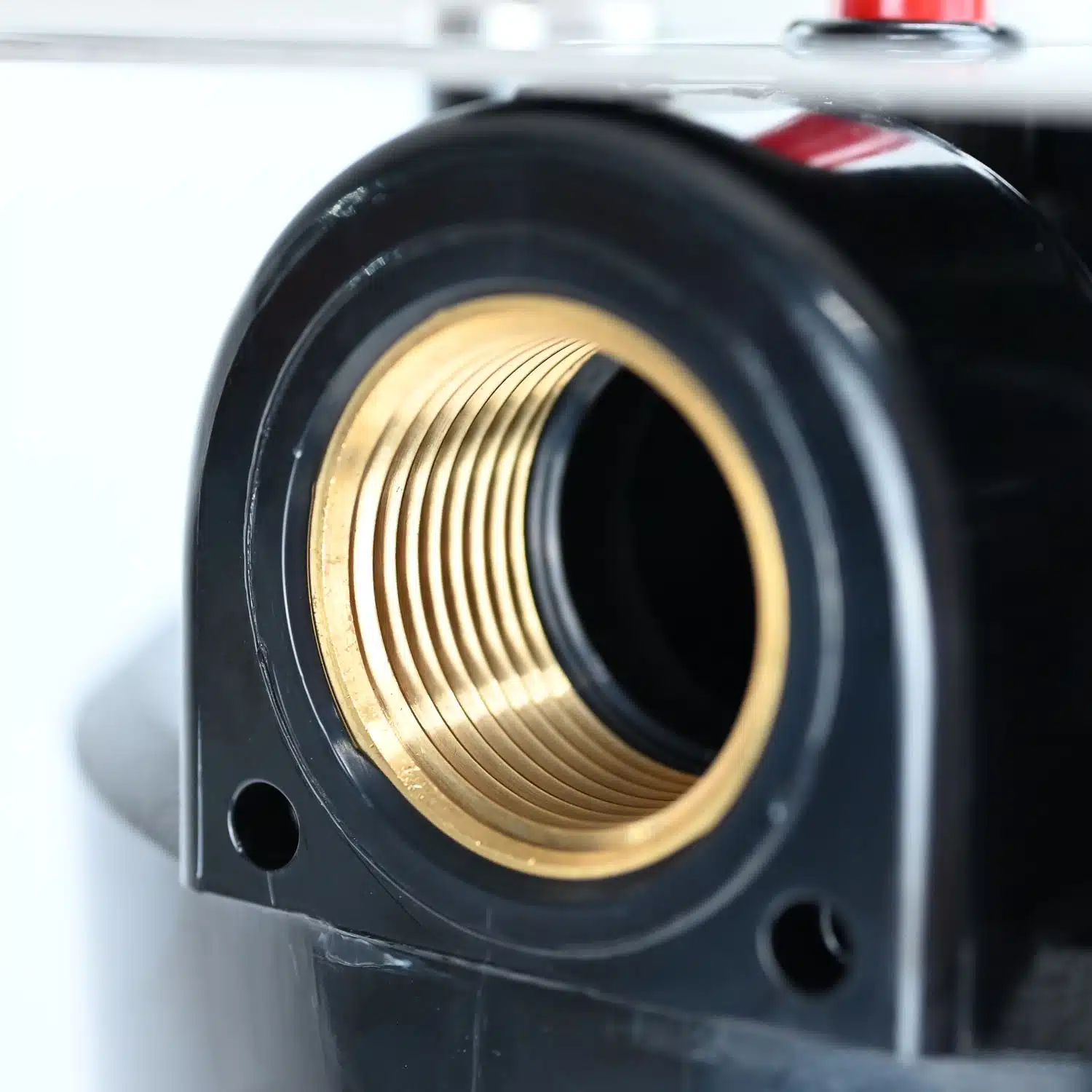

Twin Large 20″ System filter housing 1″ Bsp inlet & outlets (3/4″ with bush). Suits 20″ x 4.5″ filters Ideal for Whole of house, Pumps, Tanks etc. or any where a high flow rate is required eg. house, rural or commercial applications.

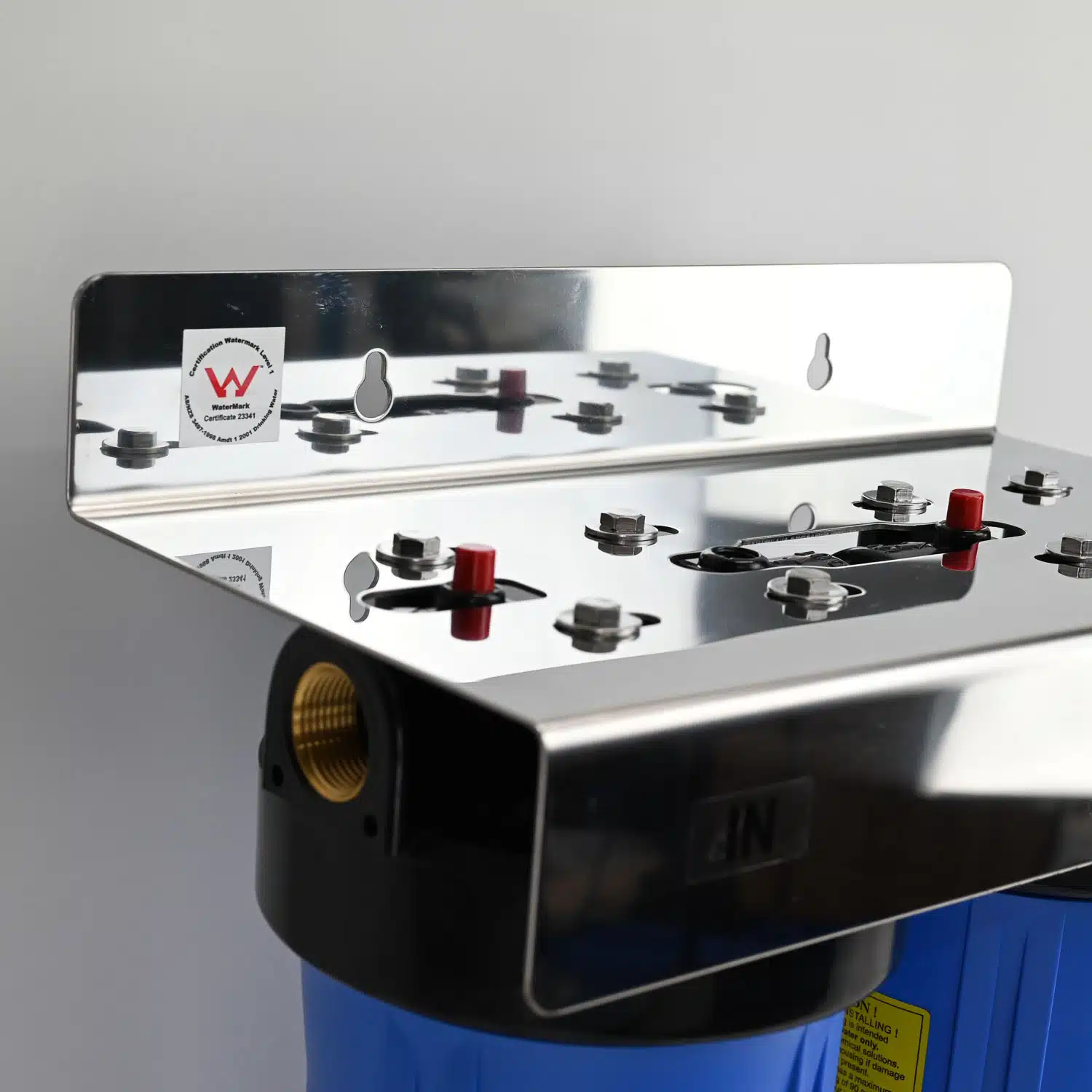

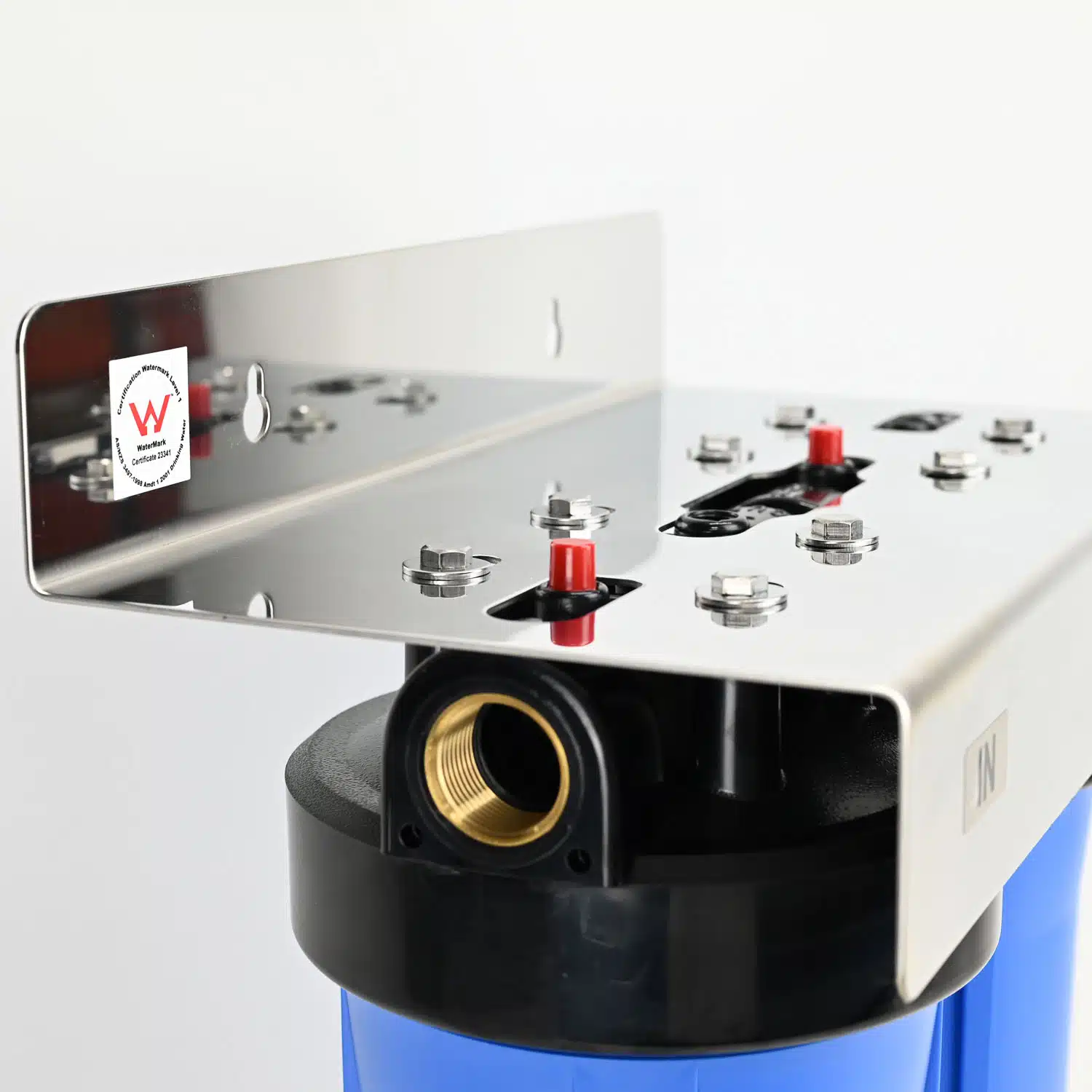

Complete two 20″ x 4.5″ housings with 1″ Bsp ports with a Stainless steel mounting bracket & screws and a plastic housing sump spanner.
Larger filters can be used which have a bigger capacity and longer service life compared to standard size filter housings.
No Filters are supplied with this system. We have a range of filters for every situation. System takes 20″ x 4.5″ filters.
Flow rate up to 170 Lpm depending on filter used and water pressure & flow.
Dimensions are 698mm high with bracket x 410mm wide. Max pressure 620 kpa
Other options available are PLV 500Kpa pressure limiting valve with 3/4″ BSP Female inlet and outlets (with brass bush fitting)
Please note: A PLV valve is recommended on mains water pressure supplies where pressure may exceed 550kpa to protect the unit from excessive pressure build-up.
Specifications:
- Flow rate: Up to 170 Lpm depending on filter used and water pressure & flow.
- Dimensions: 610mm high without bracket x 185mm wide.
- Max pressure: 620 kpa
- AS/NZS 3497:1998 Amdt 1 2001 Drinking Water Treatment Units Plumbing Requirements
- Watermark Certificate 052014 for Model ID #IT002530
